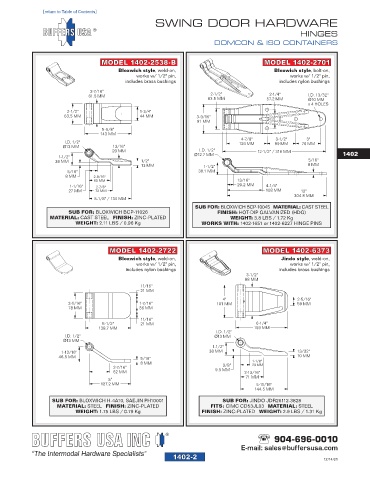

Page 155 - Buffers USA 2024 Container Hardware Catalog FlipBook

1402-02
[return to Table of Contents]
SWING DOOR HARDWARE
HINGES
DOMCON & ISO CONTAINERS

MODEL 1402-2538-B MODEL 1402-2701
Bloxwich style, weld-on, Bloxwich style, bolt-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes brass bushings includes nylon bushings
2-7/16"
61.5 MM 2-1/2" 2-1/4" I.D. 13/32"
63.5 MM 57.2 MM Ø10 MM
x 4 HOLES
2-1/2" 1-3/4"
63.5 MM 44 MM 3-9/16"
91 MM
5-5/8"
143 MM
4-7/8" 3-1/2" 3"
I.D. 1/2" 124 MM 89 MM 76 MM
Ø13 MM 13/16"
20 MM I.D. 1/2" 12-1/2" / 318 MM 1402
1-1/2" Ø12.7 MM
38 MM 1/2" 5/16"
13 MM 1-1/2" 8 MM
5/16" 38.1 MM
8 MM 2-9/16"
65 MM 13/16"
1-1/16" 2-7/8" 20.2 MM 4-1/4"
27 MM 73 MM 108 MM 12"
304.8 MM
5-1/8" / 130 MM
SUB FOR: BLOXWICH BCP-10045 MATERIAL: CAST STEEL
SUB FOR: BLOXWICH BCP-11026 FINISH: HOT-DIP GALVANIZED (HDG)
MATERIAL: CAST STEEL FINISH: ZINC-PLATED WEIGHT: 3.8 LBS / 1.72 Kg
WEIGHT: 2.11 LBS / 0.96 Kg WORKS WITH: 1402-1651 or 1402-6227 HINGE PINS

MODEL 1402-2722 MODEL 1402-6373
Bloxwich style, weld-on, Jindo style, weld-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes nylon bushings includes brass bushings
3-1/2"
88 MM
11/16"
21 MM
4" 2-5/16"
3-1/16" 1-7/16" 101 MM 59 MM
78 MM 36 MM
11/16"
5-1/2" 21 MM 6-1/4"
139.7 MM 159 MM
I.D. 1/2"
I.D. 1/2" Ø13 MM
Ø13 MM
1-1/2"
1-13/16" 38 MM 13/32"
46.5 MM 5/16" 10 MM
8 MM 1-1/8"
3/8"
29 MM
2-7/16" 9.5 MM
62 MM 2-13/16"
71 MM
5"
127.2 MM 5-11/16"
144.5 MM
SUB FOR: BLOXWICH H-4A10, SAEJIN PH10001 SUB FOR: JINDO JDR26112-3828
MATERIAL: STEEL FINISH: ZINC-PLATED FITS: CIMC CD53JL03 MATERIAL: STEEL
WEIGHT: 1.75 LBS / 0.79 Kg FINISH: ZINC-PLATED WEIGHT: 2.9 LBS / 1.31 Kg

904-696-0010
E-mail: sales@buffersusa.com
1402-2 12/14/21
