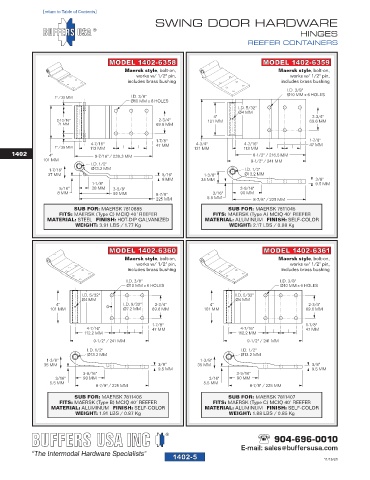

Page 158 - Buffers USA 2024 Container Hardware Catalog FlipBook

1402-05
[return to Table of Contents]
SWING DOOR HARDWARE
HINGES
REEFER CONTAINERS

MODEL 1402-6358 MODEL 1402-6359
Maersk style, bolt-on, Maersk style, bolt-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes brass bushing includes brass bushing
I.D. 3/8"
1" / 25 MM I.D. 3/8" Ø10 MM x 6 HOLES
Ø10 MM x 6 HOLES
I.D. 5/32"
Ø4 MM
4" 2-3/4"
2-13/16" 2-3/4" 101 MM 69.6 MM
71 MM 69.6 MM
1-7/8" 1-7/8"
4-7/16" 47 MM 4-3/4" 4-7/16" 47 MM
1" / 25 MM 113 MM 121 MM 113 MM
1402 4" 9-7/16" / 239.3 MM 8-1/2" / 216.5 MM
101 MM 9-1/2" / 241 MM
I.D. 1/2"
1-7/16" Ø13.2 MM I.D. 1/2"
37 MM 5/16" 1-3/8" Ø13.2 MM
8 MM 35 MM 3/8"
1-1/8" 9.5 MM
5/16" 28 MM 3-5/8" 3-9/16"
8 MM 92 MM 8-7/8" 3/16" 90 MM
225 MM 5.5 MM 8-7/8" / 225 MM
SUB FOR: MAERSK 7810885 SUB FOR: MAERSK 7811045
FITS: MAERSK (Type C) MCIQ 40' REEFER FITS: MAERSK (Type A) MCIQ 40' REEFER
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 3.91 LBS / 1.77 Kg WEIGHT: 2.17 LBS / 0.98 Kg

MODEL 1402-6360 MODEL 1402-6361
Maersk style, bolt-on, Maersk style, bolt-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes brass bushing includes brass bushing
I.D. 3/8" I.D. 3/8"
Ø10 MM x 6 HOLES Ø10 MM x 6 HOLES
I.D. 5/32" I.D. 5/32"
Ø4 MM Ø4 MM
4" I.D. 9/32" 2-3/4" 4" 2-3/4"
101 MM Ø7.2 MM 69.6 MM 101 MM 69.6 MM

1-7/8" 1-7/8"
4-7/16" 47 MM 4-7/16" 47 MM
112.2 MM 112.2 MM
9-1/2" / 241 MM 9-1/2" / 241 MM
I.D. 1/2" I.D. 1/2"
Ø13.2 MM Ø13.2 MM
1-3/8" 1-3/8"
35 MM 3/8" 35 MM 3/8"
9.5 MM 9.5 MM
3-9/16" 3-9/16"
3/16" 90 MM 3/16" 90 MM
5.5 MM 5.5 MM
8-7/8" / 225 MM 8-7/8" / 225 MM
SUB FOR: MAERSK 7811406 SUB FOR: MAERSK 7811407
FITS: MAERSK (Type B) MCIQ 40' REEFER FITS: MAERSK (Type C) MCIQ 40' REEFER
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 1.91 LBS / 0.87 Kg WEIGHT: 1.88 LBS / 0.85 Kg

904-696-0010
E-mail: sales@buffersusa.com
1402-5 11/15/21
