1401-32
[return to Table of Contents]

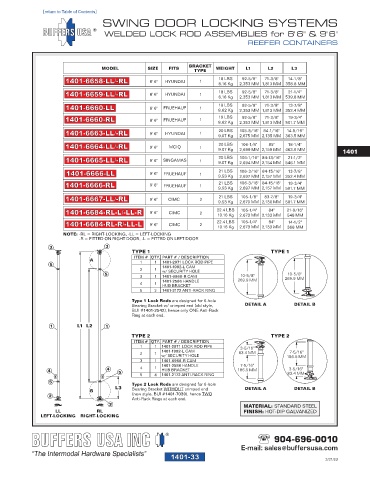

SWING DOOR LOCKING SYSTEMS
WELDED LOCK ROD ASSEMBLIES for 8' 6" & 9' 6"
REEFER CONTAINERS

MODEL SIZE FITS BRACKET WEIGHT L1 L2 L3
TYPE
14-1/8"
71-3/8"
92-5/8"
1401-6658-LL/-RL 8' 6" HYUNDAI 1 18 LBS 2,353 MM 1,813 MM 358.8 MM
8.16 Kg
21-1/4"
92-5/8"
71-3/8"
1401-6659-LL/-RL 8' 6" HYUNDAI 1 18 LBS 2,353 MM 1,813 MM 539.8 MM
8.16 Kg
19 LBS
13-7/8"
71-3/8"
92-5/8"
1401-6660-LL 8' 6" FRUEHAUF 1 8.62 Kg 2,353 MM 1,813 MM 352.4 MM
19 LBS
71-3/8"
92-5/8"
19-3/4"
1401-6660-RL 8' 6" FRUEHAUF 1 8.62 Kg 2,353 MM 1,813 MM 501.7 MM
20 LBS
14-5/16"
84-1/16"
105-5/16"
1401-6663-LL/-RL 9' 6" HYUNDAI 1 9.07 Kg 2,675 MM 2,135 MM 363.5 MM
1401-6664-LL/-RL 9' 6" MCIQ 1 9.07 Kg 2,699 MM 2,159 MM 463.6 MM 1401
20 LBS
18-1/4"
85"
106-1/4"
20 LBS
21-1/2"
1401-6665-LL/-RL 9' 6" SINGAMAS 1 9.07 Kg 2,694 MM 2,154 MM 546.1 MM
106-1/16" 84-13/16"
13-7/8"
106-3/16" 84-15/16"
21 LBS
1401-6666-LL 9' 6" FRUEHAUF 1 9.53 Kg 2,697 MM 2,157 MM 352.4 MM
1401-6666-RL 9' 6" FRUEHAUF 1 21 LBS 106-3/16" 84-15/16" 19-3/4"
9.53 Kg 2,697 MM 2,157 MM 501.7 MM
83-7/8"
19-3/4"
21 LBS
105-1/8"
1401-6667-LL/-RL 9' 6" CIMC 2 9.53 Kg 2,670 MM 2,130 MM 501.7 MM
1401-6684-RL-L/-LL-R 9' 6" CIMC 2 22.4 LBS 2,673 MM 2,133 MM 21-9/16"
105-1/4"
84"
10.16 Kg
548 MM
14-1/2"
84"
105-1/4"
1401-6684-RL-R/-LL-L 9' 6" CIMC 2 22.4 LBS 2,673 MM 2,133 MM 368 MM
10.16 Kg
NOTE: -RL = RIGHT-LOCKING, -LL = LEFT-LOCKING
-R = FITTED ON RIGHT DOOR, -L = FITTED ON LEFT DOOR
3 3
TYPE 1 TYPE 1
ITEM # QTY. PART # / DESCRIPTION
A
5 1 1 1401-2971 LOCK ROD PIPE
1401-1992-L CAM
2 1 w/ SECURITY HOLE
5 3 1 1401-6968-R CAM 10-5/8" 10-5/8"
1401-2586 HANDLE 269.9 MM 269.9 MM
4 1 HUB BRACKET
5 2 1401-2172 ANTI-RACK RING
Type 1 Lock Rods are designed for 6-hole
Bearing Bracket w/ crimped end (old style, DETAIL A DETAIL B
BUI #1401-2542), hence only ONE Anti-Rack
Ring at each end.
1 L1 L2 1
TYPE 2 TYPE 2
ITEM # QTY. PART # / DESCRIPTION
1 1 1401-2971 LOCK ROD PIPE 3-5/16"
1401-1992-L CAM 7-5/16"
2 1 w/ SECURITY HOLE 83.4 MM 186.5 MM
3 1 1401-6968-R CAM
1401-2586 HANDLE 7-5/16"
4
1
4 4 5 HUB BRACKET 186.5 MM 3-5/16"
5 4 1401-2172 ANTI-RACK RING 83.4 MM
5 Type 2 Lock Rods are designed for 6-hole
L3 Bearing Bracket WITHOUT crimped end DETAIL A DETAIL B
B
2 (new style, BUI #1401-7030), hence TWO
Anti-Rack Rings at each end.
2 MATERIAL: STANDARD STEEL
LL RL FINISH: HOT-DIP GALVANIZED
LEFT-LOCKING RIGHT-LOCKING
904-696-0010
E-mail: sales@buffersusa.com
1401-33 2/21/23
