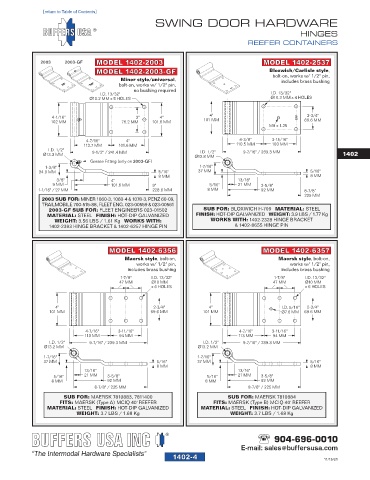

Page 157 - Buffers USA 2024 Container Hardware Catalog FlipBook

1402-04
[return to Table of Contents]
SWING DOOR HARDWARE
HINGES
REEFER CONTAINERS

2003 2003-GF MODEL 1402-2003 MODEL 1402-2537
MODEL 1402-2003-GF Bloxwich/Carlisle style,
Miner style/universal, bolt-on, works w/ 1/2" pin,
includes brass bushing
bolt-on, works w/ 1/2" pin,
no bushing required
I.D. 13/32" I.D. 13/32"
Ø10.2 MM x 5 HOLES Ø10.3 MM x 4 HOLES

4-1/16" 3" 4" 4" 2-3/4"
102 MM 76.2 MM 101.6 MM 101 MM 69.6 MM
M8 x 1.25
4-7/16" 4" 4-3/8" 3-15/16"
113.7 MM 101.6 MM 110.5 MM 100 MM
I.D. 1/2" I.D. 1/2" 9-7/16" / 239.3 MM
Ø13.3 MM 9-1/2" / 241.4 MM Ø12.8 MM 1402
Grease Fitting (only on 2003-GF)
1-3/8" 1-7/16"
34.9 MM 5/16" 37 MM 5/16"
8 MM 8 MM
3/8" 4" 13/16"
9 MM 101.6 MM 9" 5/16" 21 MM 3-5/8"
1-1/16" / 27 MM 228.6 MM 8 MM 92 MM 8-7/8”
225 MM
2003 SUB FOR: MINER 1060-3, 1060-4 & 1078-3, PENZ 60-09,
TRAILMOBILE 700-515-88, FLEET ENG. 023-00559 & 023-00561
2003-GF SUB FOR: FLEET ENGINEERS 023-01502 SUB FOR: BLOXWICH H-709 MATERIAL: STEEL
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED FINISH: HOT-DIP GALVANIZED WEIGHT: 3.9 LBS / 1.77 Kg
WEIGHT: 3.56 LBS / 1.61 Kg WORKS WITH: WORKS WITH: 1402-2328 HINGE BRACKET
1402-2393 HINGE BRACKET & 1402-6257 HINGE PIN & 1402-8655 HINGE PIN

MODEL 1402-6356 MODEL 1402-6357
Maersk style, bolt-on, Maersk style, bolt-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes brass bushing includes brass bushing
1-7/8" I.D. 13/32" 1-7/8" I.D. 13/32"
47 MM Ø10 MM 47 MM Ø10 MM
x 6 HOLES x 6 HOLES

4" 2-3/4" 4" I.D. 5/16" 2-3/4"
101 MM 69.6 MM 101 MM Ø7.6 MM 69.6 MM

4-7/16" 3-11/16" 4-7/16" 3-11/16"
113 MM 94 MM 113 MM 94 MM
I.D. 1/2" 9-7/16" / 239.3 MM I.D. 1/2" 9-7/16" / 239.3 MM
Ø13.2 MM Ø13.2 MM
1-7/16" 1-7/16"
37 MM 5/16" 37 MM 5/16"
8 MM 8 MM
13/16" 13/16"
5/16" 21 MM 3-5/8" 5/16" 21 MM 3-5/8"
8 MM 92 MM 8 MM 92 MM
8-7/8" / 225 MM 8-7/8" / 225 MM
SUB FOR: MAERSK 7810883, 7811400 SUB FOR: MAERSK 7810884
FITS: MAERSK (Type A) MCIQ 40' REEFER FITS: MAERSK (Type B) MCIQ 40' REEFER
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED
WEIGHT: 3.7 LBS / 1.68 Kg WEIGHT: 3.7 LBS / 1.68 Kg

904-696-0010
E-mail: sales@buffersusa.com
1402-4 11/15/21
