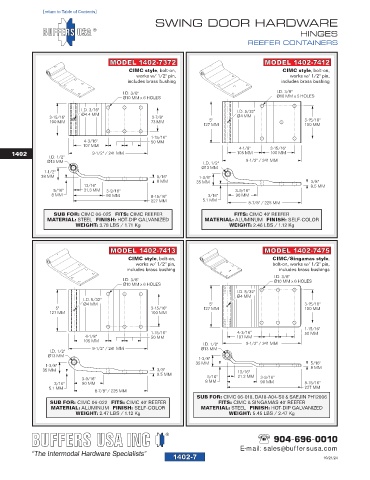

Page 160 - Buffers USA 2024 Container Hardware Catalog FlipBook

1402-07
[return to Table of Contents]
SWING DOOR HARDWARE
HINGES
REEFER CONTAINERS

MODEL 1402-7372 MODEL 1402-7412
CIMC style, bolt-on, CIMC style, bolt-on,
works w/ 1/2" pin, works w/ 1/2" pin,
includes brass bushing includes brass bushing

I.D. 3/8" I.D. 3/8"
Ø10 MM x 6 HOLES Ø10 MM x 5 HOLES
I.D. 3/16" I.D. 5/32"
Ø4.4 MM
3-15/16" 2-7/8" Ø4 MM
100 MM 73 MM 5" 3-15/16"
127 MM 100 MM
1-15/16"
4-3/16" 50 MM
107 MM
4-1/8" 3-15/16"
1402 9-1/2" / 241 MM 105 MM 100 MM
I.D. 1/2"
Ø13 MM I.D. 1/2" 9-1/2" / 241 MM
Ø13 MM
1-1/2"
38 MM 5/16" 1-3/8"
8 MM 35 MM 3/8"
13/16" 9.5 MM
5/16" 21.3 MM 3-9/16" 3-9/16"
8 MM 90 MM 8-15/16" 3/16" 90 MM
227 MM 5.1 MM 8-7/8" / 225 MM
SUB FOR: CIMC 06-025 FITS: CIMC REEFER FITS: CIMC 40' REEFER
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 3.78 LBS / 1.71 Kg WEIGHT: 2.46 LBS / 1.12 Kg

MODEL 1402-7413 MODEL 1402-7475
CIMC style, bolt-on, CIMC/Singamas style,
works w/ 1/2" pin, bolt-on, works w/ 1/2" pin,
includes brass bushing includes brass bushings
I.D. 3/8"
I.D. 3/8" Ø10 MM x 6 HOLES
Ø10 MM x 6 HOLES
I.D. 5/32"
Ø4 MM
I.D. 5/32"
Ø4 MM 5" 3-15/16"
5" 3-15/16" 127 MM 100 MM
127 MM 100 MM
1-15/16"
1-15/16" 4-3/16" 50 MM
4-1/8" 50 MM 107 MM
105 MM
I.D. 1/2" 9-1/2" / 241 MM
9-1/2" / 241 MM Ø13 MM
I.D. 1/2"
Ø13 MM
1-3/8"
35 MM 5/16"
1-3/8" 8 MM
35 MM 3/8" 13/16"
9.5 MM 21.2 MM
3-9/16" 5/16" 3-9/16"
3/16" 90 MM 8 MM 90 MM 8-15/16"
5.1 MM 227 MM
8-7/8" / 225 MM
SUB FOR: CIMC 06-018, DA18-A04-S0 & SAEJIN PH12006
SUB FOR: CIMC 06-022 FITS: CIMC 40' REEFER FITS: CIMC & SINGAMAS 40' REEFER
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED
WEIGHT: 2.47 LBS / 1.12 Kg WEIGHT: 5.45 LBS / 2.47 Kg

904-696-0010
E-mail: sales@buffersusa.com
1402-7 10/21/24
