1401-33
[return to Table of Contents]

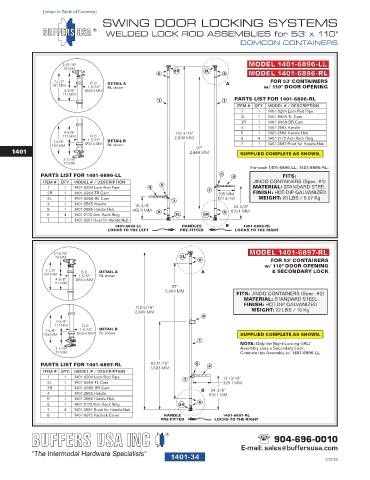

SWING DOOR LOCKING SYSTEMS
WELDED LOCK ROD ASSEMBLIES for 53' x 110"
DOMCON CONTAINERS

2-15/16" MODEL 1401-6896-LL
74 MM 2R 2L
6 6 MODEL 1401-6896-RL
7-1/2" O.D. FOR 53' CONTAINERS
191 MM 1-5/16" DETAIL A A w/ 110" DOOR OPENING
RL shown
4-5/8" Ø33.4 MM
117 MM
1 1 PARTS LIST FOR 1401-6896-RL
ITEM # QTY. MODEL # / DESCRIPTION
1 1 1401-6204 Lock Rod Pipe
2L 1 1401-6969-TL Cam
3R 1 1401-6968-BR Cam
4 1 1401-2585 Handle
4-5/8" 112-3/16" 5 1 1401-2586 Handle Hub
117 MM O.D. 2,849 MM 6 4 1401-2172 Anti-Rack Ring
7-5/8" 1-5/16" DETAIL B
194 MM Ø33.4 MM RL shown 97" 7 1 1401-2587 Rivet for Handle Hub
1401 2,464 MM SUPPLIED COMPLETE AS SHOWN.
3-1/16"
77 MM
For each 1401-6896-LL, 1401-6896-RL:
PARTS LIST FOR 1401-6896-LL 5 4 FITS:
ITEM # QTY. MODEL # / DESCRIPTION 5 JINDO CONTAINERS (Spec. #1)
1 1 1401-6204 Lock Rod Pipe 4 7 MATERIAL: STANDARD STEEL
2R 1 1401-6969-TR Cam 325 MM FINISH: HOT-DIP GALVANIZED
3L 1 1401-6968-BL Cam 7 12-13/16" WEIGHT: 20 LBS / 9.07 Kg
4 1 1401-2585 Handle 16-3/8"
24-3/8"
5 1 1401-2586 Handle Hub 415.9 MM 619.1 MM
6 4 1401-2172 Anti-Rack Ring 6 3L 3R 6
7 1 1401-2587 Rivet for Handle Hub
1401-6896-LL HANDLES B 1401-6896-RL
LOCKS TO THE LEFT PRE-FITTED LOCKS TO THE RIGHT

MODEL 1401-6897-RL
2-15/16"
74 MM 2L
6 FOR 53' CONTAINERS
w/ 110" DOOR OPENING
7-1/2" O.D. DETAIL A A & SECONDARY LOCK
191 MM 1-5/16" RL shown
4-5/8" Ø33.4 MM
117 MM
97"
2,464 MM FITS: JINDO CONTAINERS (Spec. #2)
MATERIAL: STANDARD STEEL
FINISH: HOT-DIP GALVANIZED
112-3/16" WEIGHT: 22 LBS / 10 Kg
2,849 MM
8
4-5/8"
117 MM O.D.
7-5/8" 1-5/16" DETAIL B
194 MM Ø33.4 MM RL shown SUPPLIED COMPLETE AS SHOWN.
1
NOTE: Only the Right-Locking (-RL)
3-1/16" Assembly uses a Secondary Lock.
77 MM Combine this Assembly w/ 1401-6896-LL.
PARTS LIST FOR 1401-6897-RL 62-11/16" 5 4
1,593 MM
ITEM # QTY. MODEL # / DESCRIPTION
1 1 1401-6204 Lock Rod Pipe 7 12-13/16"
2L 1 1401-6969-TL Cam 325.1 MM
3R 1 1401-6968-BR Cam B 24-3/8"
4 1 1401-2585 Handle 619.1 MM
5 1 1401-2586 Handle Hub
6 1 1401-2172 Anti-Rack Ring 3R 6
7 4 1401-2587 Rivet for Handle Hub
8 1 1401-6972 Padlock Cover HANDLE 1401-6897-RL
PRE-FITTED LOCKS TO THE RIGHT

904-696-0010
E-mail: sales@buffersusa.com
1401-34 2/21/23
