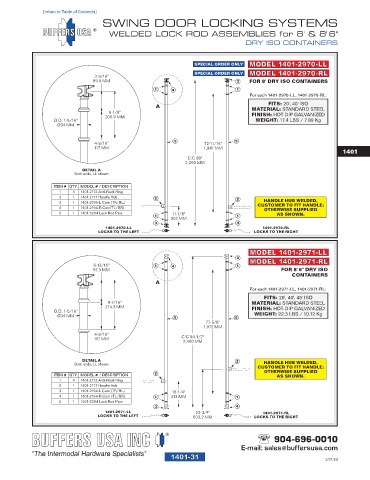

SWING DOOR LOCKING SYSTEMS
WELDED LOCK ROD ASSEMBLIES for 8' & 8' 6"
DRY ISO CONTAINERS

SPECIAL ORDER ONLY MODEL 1401-2970-LL
SPECIAL ORDER ONLY MODEL 1401-2970-RL
3-9/16"
89.9 MM 3 FOR 8' DRY ISO CONTAINERS
1 4 1
For each 1401-2970-LL, 1401-2970-RL:
FITS: 20', 40' ISO
A MATERIAL: STANDARD STEEL
8-1/8" FINISH: HOT-DIP GALVANIZED
206.9 MM
O.D. 1-5/16" WEIGHT: 17.4 LBS / 7.89 Kg
Ø34 MM

4-9/16" 5 72-11/16" 5
117 MM 1,847 MM
1401
C:C 89"
2,260 MM
DETAIL A
Both ends, LL shown
ITEM # QTY. MODEL # / DESCRIPTION
1 4 1401-2172 Anti-Rack Ring
2 1 1401-2177 Handle Hub 2 2
3 1 1401-2194-L Cam (TR/BL) HANDLE HUB WELDED,
4 1 1401-2194-R Cam(TL/BR) CUSTOMER TO FIT HANDLE;
OTHERWISE SUPPLIED
5 1 1401-6204 Lock Rod Pipe 11-7/8" AS SHOWN.
1 1
302 MM
3 4
1401-2970-LL 1401-2970-RL
LOCKS TO THE LEFT LOCKS TO THE RIGHT
MODEL 1401-2971-LL
3 MODEL 1401-2971-RL
3-13/16" 1 4 1
97.3 MM FOR 8' 6" DRY ISO
CONTAINERS
A
For each 1401-2971-LL, 1401-2971-RL:
FITS: 20', 40', 45' ISO
8-7/16" MATERIAL: STANDARD STEEL
214.3 MM FINISH: HOT-DIP GALVANIZED
O.D. 1-5/16"
Ø34 MM 5 5 WEIGHT: 22.3 LBS / 10.12 Kg
77-5/8"
1,972 MM
4-9/16"
117 MM C:C 94-1/2"
2,400 MM

DETAIL A 2
Both ends, LL shown HANDLE HUB WELDED,
CUSTOMER TO FIT HANDLE;
ITEM # QTY. MODEL # / DESCRIPTION 2 OTHERWISE SUPPLIED
AS SHOWN.
1 4 1401-2172 Anti-Rack Ring
2 1 1401-2177 Handle Hub
3 1 1401-2194-L Cam (TR/BL) 16-1/4"
4 1 1401-2194-R Cam (TL/BR) 1 413 MM 1
5 1 1401-6204 Lock Rod Pipe
3 4
1401-2971-LL 23-3/4" 1401-2971-RL
LOCKS TO THE LEFT 603.2 MM LOCKS TO THE RIGHT
