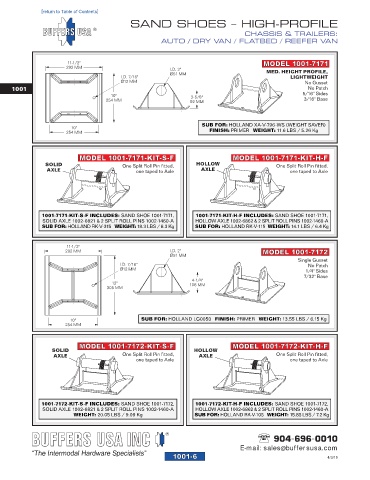

Page 20 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1001-06
[return to Table of Contents]
SAND SHOES – HIGH-PROFILE
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

11-1/2" MODEL 1001-7171
292 MM I.D. 2"
Ø51 MM MED. HEIGHT PROFILE,
I.D. 7/16" LIGHTWEIGHT
Ø12 MM No Gusset
1001 No Patch
10" 3-5/8" 5/16" Sides
254 MM 92 MM 3/16" Base

SUB FOR: HOLLAND XA-V-796-WS (WEIGHT SAVER)
10"
254 MM FINISH: PRIMER WEIGHT: 11.6 LBS / 5.26 Kg

MODEL 1001-7171-KIT-S-F MODEL 1001-7171-KIT-H-F
SOLID One Split Roll Pin fitted, HOLLOW One Split Roll Pin fitted,
AXLE one taped to Axle AXLE one taped to Axle

1001-7171-KIT-S-F INCLUDES: SAND SHOE 1001-7171, 1001-7171-KIT-H-F INCLUDES: SAND SHOE 1001-7171,
SOLID AXLE 1002-6821 & 2 SPLIT ROLL PINS 1002-1460-A HOLLOW AXLE 1002-6862 & 2 SPLIT ROLL PINS 1002-1460-A
SUB FOR: HOLLAND RK-V-315 WEIGHT: 18.3 LBS / 8.3 Kg SUB FOR: HOLLAND RK-V-115 WEIGHT: 14.1 LBS / 6.4 Kg

11-1/2"
292 MM I.D. 2" MODEL 1001-7172
Ø51 MM
Single Gusset
I.D. 7/16" No Patch
Ø12 MM 1/4" Sides
7/32" Base
4-1/4"
12" 108 MM
305 MM

10" SUB FOR: HOLLAND LG0050 FINISH: PRIMER WEIGHT: 13.55 LBS / 6.15 Kg
254 MM

MODEL 1001-7172-KIT-S-F MODEL 1001-7172-KIT-H-F
SOLID HOLLOW
AXLE One Split Roll Pin fitted, AXLE One Split Roll Pin fitted,
one taped to Axle one taped to Axle

1001-7172-KIT-S-F INCLUDES: SAND SHOE 1001-7172, 1001-7172-KIT-H-F INCLUDES: SAND SHOE 1001-7172,
SOLID AXLE 1002-6821 & 2 SPLIT ROLL PINS 1002-1460-A HOLLOW AXLE 1002-6862 & 2 SPLIT ROLL PINS 1002-1460-A
WEIGHT: 20.05 LBS / 9.09 Kg SUB FOR: HOLLAND RK-V-105 WEIGHT: 15.85 LBS / 7.2 Kg

904-696-0010
E-mail: sales@buffersusa.com
1001-6 4/3/19
