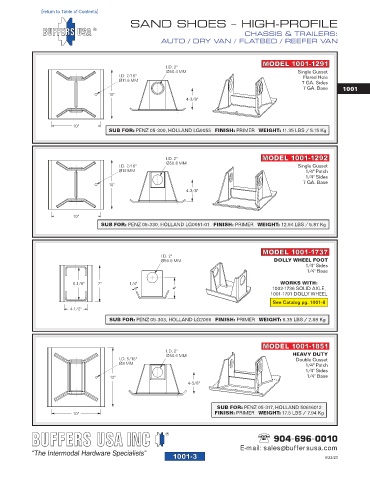

Page 17 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1001-03
[return to Table of Contents]
SAND SHOES – HIGH-PROFILE
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1001-1291
I.D. 2"
Ø50.4 MM Single Gusset
I.D. 7/16" Flared Hole
Ø11.6 MM 7 GA. Sides
7 GA. Base 1001
10"
4-3/8"

10"
SUB FOR: PENZ 05-300, HOLLAND LG0055 FINISH: PRIMER WEIGHT: 11.35 LBS / 5.15 Kg

I.D. 2" MODEL 1001-1292
Ø50.8 MM
I.D. 7/16" Single Gusset
Ø12 MM 1/4" Patch
1/4" Sides
7 GA. Base
10"
4-3/8"

10"
SUB FOR: PENZ 05-330, HOLLAND LG0051-01 FINISH: PRIMER WEIGHT: 12.94 LBS / 5.87 Kg

MODEL 1001-1737
I.D. 2"
Ø50.8 MM DOLLY WHEEL FOOT
1/4" Sides
1/4" Base

6-1/8" 7" 1/4" WORKS WITH:
4" 1002-1736 SOLID AXLE,
1001-1791 DOLLY WHEEL
See Catalog pg. 1001-8
4-1/2"
SUB FOR: PENZ 05-303, HOLLAND LG2066 FINISH: PRIMER WEIGHT: 6.35 LBS / 2.88 Kg

MODEL 1001-1851
I.D. 2"
Ø50.6 MM HEAVY DUTY
I.D. 5/16" Double Gusset
Ø8 MM 1/4" Patch
1/4" Sides
12" 1/4" Base
4-3/8"

SUB FOR: PENZ 05-317, HOLLAND 50616012
10" FINISH: PRIMER WEIGHT: 17.5 LBS / 7.94 Kg

904-696-0010
E-mail: sales@buffersusa.com
1001-3 6/22/23
