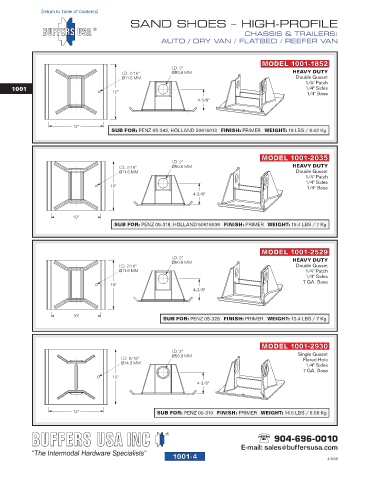

Page 18 - Buffers USA 2024 Trailer Hardware Catalog FlipBook
P. 18
1001-04
[return to Table of Contents]
SAND SHOES – HIGH-PROFILE
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN
MODEL 1001-1852
I.D. 2"
I.D. 7/16" Ø50.8 MM HEAVY DUTY
Ø11.6 MM Double Gusset
1/4" Patch
1001 1/4" Sides
12" 1/4" Base
4-3/8"
12"
SUB FOR: PENZ 05-342, HOLLAND 50616013 FINISH: PRIMER WEIGHT: 19 LBS / 8.62 Kg
MODEL 1001-2035
I.D. 2"
I.D. 7/16" Ø50.8 MM HEAVY DUTY
Ø11.6 MM Double Gusset
1/4" Patch
1/4" Sides
10" 1/4" Base
4-3/8"
10"
SUB FOR: PENZ 05-318, HOLLAND 50616036 FINISH: PRIMER WEIGHT: 15.4 LBS / 7 Kg
MODEL 1001-2529
I.D. 2" HEAVY DUTY
Ø50.8 MM
I.D. 7/16" Double Gusset
Ø11.6 MM 1/4" Patch
1/4" Sides
7 GA. Base
10"
4-3/8"
10"
SUB FOR: PENZ 05-328 FINISH: PRIMER WEIGHT: 15.4 LBS / 7 Kg
MODEL 1001-2930
I.D. 2"
Ø50.8 MM Single Gusset
I.D. 9/16" Flared Hole
Ø14.3 MM 1/4" Sides
7 GA. Base
12"
4-3/8"
12" SUB FOR: PENZ 05-319 FINISH: PRIMER WEIGHT: 14.5 LBS / 6.58 Kg
904-696-0010
E-mail: sales@buffersusa.com
1001-4 4/3/19
