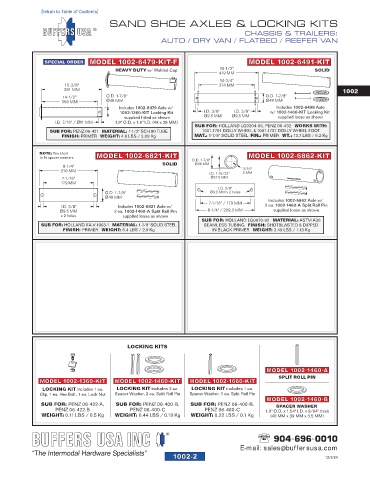

SAND SHOE AXLES & LOCKING KITS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1002-6478-KIT-F SPECIAL ORDER MODEL 1002-6479-KIT-F
EXTRA HEAVY DUTY HEAVY DUTY w/ Welded Cap
8-1/2" w/ Welded Cap
216 MM
7-5/8" 15-3/8"
193 MM 391 MM 1002
14-1/2" O.D. 1-7/8"
O.D. 1-7/8" 368 MM Ø48 MM
Ø48 MM
Includes 1002-6478 Axle Includes 1002-6479 Axle w/
I.D. 7/16" w/ 1002-1360-KIT Locking Kit 1002-1360-KIT Locking Kit
Ø11 MM supplied fitted as shown supplied fitted as shown
1.9" O.D. x 1.34" I.D. (48 x 34 MM) I.D. 7/16" / Ø11 MM 1.9" O.D. x 1.5" I.D. (48 x 38 MM)
SUB FOR: HOLLAND 50616044, PENZ 06-425 MATERIAL: SUB FOR: PENZ 06-421 MATERIAL: 1-1/2" SCH 80 TUBE
1-1/2" SCH 160 TUBE FINISH: PRIMER WEIGHT: 3.8 LBS / 1.72 Kg FINISH: PRIMER WEIGHT: 4.6 LBS / 2.09 Kg

MODEL 1002-6491-KIT NOTE: Too short MODEL 1002-6821-KIT
to fit spacer washers
16-1/2" SOLID SOLID
419 MM 8-1/4"
210 MM
14-3/4"
374 MM 7-1/16"
179 MM
O.D. 1-7/8"
Ø48 MM O.D. 1-7/8"
Ø48 MM
Includes 1002-6498 Axle
I.D. 3/8" I.D. 3/8" w/ 1002-1460-KIT Locking Kit I.D. 3/8" I.D. 3/8" Includes 1002-6821 Axle w/
Ø9.5 MM Ø9.5 MM supplied loose as shown Ø9.5 MM Ø9.5 MM 2 ea. 1002-1460-A Split Roll Pin
supplied loose as shown
SUB FOR: HOLLAND LG0204-05, PENZ 06-432 WORKS WITH:
1001-1791 DOLLY WHEEL & 1001-1737 DOLLY WHEEL FOOT SUB FOR: HOLLAND XA-V-1903-1 MATERIAL: 1-7/8" SOLID STEEL
MAT.: 1-7/8" SOLID STEEL FIN.: PRIMER WT.: 13.7 LBS / 6.2 Kg FINISH: PRIMER WEIGHT: 6.4 LBS / 2.9 Kg

MODEL 1002-6862-KIT
O.D. 1-7/8"
Ø48 MM
3/16"
I.D. 1-15/32" 5 MM
Ø37.5 MM
I.D. 3/8"
Ø9.5 MM x 2 HOLES
Includes 1002-6862 Axle w/
7-1/16" / 179 MM 2 ea. 1002-1460-A Split Roll Pin
8-1/4" / 209.3 MM supplied loose as shown
SUB FOR: HOLLAND LG0070-02 MATERIAL: ASTM A36
SEAMLESS TUBING FINISH: SHOTBLASTED & DIPPED
IN BLACK PRIMER WEIGHT: 2.49 LBS / 1.13 Kg

LOCKING KITS

MODEL 1002-1460-A
SPLIT ROLL PIN
MODEL 1002-1360-KIT MODEL 1002-1460-KIT MODEL 1002-1660-KIT
LOCKING KIT includes 1 ea. LOCKING KIT includes 2 ea. LOCKING KIT includes 1 ea.
Clip, 1 ea. Hex Bolt, 1 ea. Lock Nut Spacer Washer, 2 ea. Split Roll Pin Spacer Washer, 1 ea. Split Roll Pin
MODEL 1002-1460-B
SUB FOR: PENZ 06-422-A, SUB FOR: PENZ 06-400-B, SUB FOR: PENZ 06-400-B, SPACER WASHER
PENZ 06-422-B PENZ 06-400-C PENZ 06-400-C 1.9" O.D. x 1.54" I.D. x 9/64" thick
WEIGHT: 0.11 LBS / 0.5 Kg WEIGHT: 0.44 LBS / 0.19 Kg WEIGHT: 0.22 LBS / 0.1 Kg (48 MM x 39 MM x 3.5 MM)
