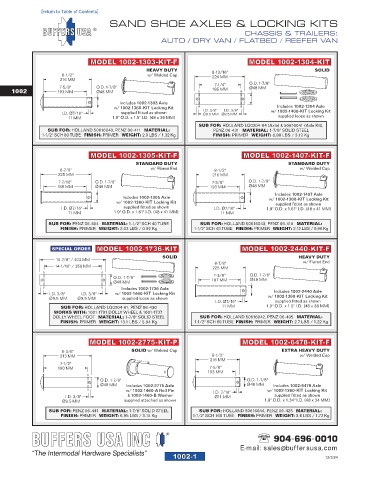

P. 24

1002-01
               [return to Table of Contents]
                                     SAND SHOE AXLES & LOCKING KITS
                                                                                  CHASSIS & TRAILERS:
                                                      AUTO / DRY VAN / FLATBED / REEFER VAN


                               MODEL 1002-1303-KIT-F                               MODEL 1002-1304-KIT
                                                 HEAVY DUTY            8-13/16"                          SOLID
                     8-1/2"                       w/ Welded Cap        224 MM
                     216 MM
                                                                        7-1/4"      O.D. 1-7/8"
                     7-5/8"      O.D. 1-7/8"                                        Ø48 MM
     1002           193 MM       Ø48 MM                                185 MM
                                         Includes 1002-1303 Axle
                                       w/ 1002-1360-KIT Locking Kit  I.D. 3/8"  I.D. 3/8"    Includes 1002-1304 Axle
                     I.D. Ø7/16"         supplied fitted as shown   Ø9.5 MM  Ø9.5 MM       w/ 1002-1460-KIT Locking Kit
                        11 MM         1.9" O.D. x 1.5" I.D. (48 x 38 MM)                     supplied loose as shown
                                                                   SUB FOR: HOLLAND LG0204-04 (Axle) & 50616041 (Axle Kit),
                 SUB FOR: HOLLAND 50616040, PENZ 06-411   MATERIAL:     PENZ 06-431   MATERIAL: 1-7/8" SOLID STEEL
               1-1/2" SCH 80 TUBE   FINISH: PRIMER   WEIGHT: 2.9 LBS / 1.32 Kg  FINISH: PRIMER   WEIGHT: 6.88 LBS / 3.12 Kg


                               MODEL 1002-1305-KIT-F                              MODEL 1002-1407-KIT-F
                                              STANDARD DUTY                                     STANDARD DUTY
                     8-7/8"                        w/ Flared End        8-1/2"                      w/ Welded Cap
                    225 MM                                             216 MM
                    7-7/16"      O.D. 1-7/8"                           7-5/8"      O.D. 1-7/8"
                    188 MM       Ø48 MM                                193 MM      Ø48 MM
                                                                                            Includes 1002-1407 Axle
                                          Includes 1002-1305 Axle                         w/ 1002-1360-KIT Locking Kit
                                        w/ 1002-1360-KIT Locking Kit                        supplied fitted as shown
                     I.D. Ø7/16"          supplied fitted as shown      I.D. Ø7/16"      1.9" O.D. x 1.61" I.D. (48 x 41 MM)
                        11 MM          1.9" O.D. x 1.61" I.D. (48 x 41 MM)  11 MM
                 SUB FOR: PENZ 06-404   MATERIAL: 1-1/2" SCH 40 TUBE  SUB FOR: HOLLAND 50616043, PENZ 06-410   MATERIAL:
                     FINISH: PRIMER   WEIGHT: 2.03 LBS / 0.92 Kg  1-1/2" SCH 40 TUBE   FINISH: PRIMER   WEIGHT: 2.12 LBS / 0.96 Kg


                  SPECIAL ORDER  MODEL 1002-1736-KIT                             MODEL 1002-2440-KIT-F
                                                       SOLID                                        HEAVY DUTY
                    15-7/8" / 403 MM
                                                                        8-7/8"                       w/ Flared End
                   14-1/16" / 358 MM                                   225 MM
                                                                        7-3/8"
                                       O.D. 1-7/8"                     187 MM       O.D. 1-7/8"
                                                                                    Ø48 MM
                                       Ø48 MM
                                         Includes 1002-1736 Axle
                 I.D. 3/8"  I.D. 3/8"  w/ 1002-1460-KIT Locking Kit                         Includes 1002-2440 Axle
                 Ø9.5 MM   Ø9.5 MM       supplied loose as shown                          w/ 1002-1360-KIT Locking Kit
                                                                        I.D. Ø7/16"         supplied fitted as shown
                     SUB FOR: HOLLAND LG0204-01, PENZ 06-430              11 MM          1.9" O.D. x 1.5" I.D. (48 x 38 MM)
                   WORKS WITH: 1001-1791 DOLLY WHEEL & 1001-1737
                  DOLLY WHEEL FOOT   MATERIAL: 1-7/8" SOLID STEEL  SUB FOR: HOLLAND 50616042, PENZ 06-405   MATERIAL:
                     FINISH: PRIMER   WEIGHT: 13.1 LBS / 5.94 Kg  1-1/2" SCH 80 TUBE  FINISH: PRIMER   WEIGHT: 2.7 LBS / 1.22 Kg

                               MODEL 1002-2775-KIT-P              SPECIAL ORDER  MODEL 1002-2896-KIT-F
                     8-3/8"                  SOLID w/ Welded Cap                      STANDARD DUTY w/ Welded Cap
                     213 MM
                     7-1/2"
                    190 MM                                                15-3/8"
                                                                         391 MM
                                                                         14-1/2"        O.D. 1-7/8"
                                  O.D. 1-7/8"                            368 MM         Ø48 MM
                                  Ø48 MM   Includes 1002-2775 Axle                          Includes 1002-2896 Axle
                                           w/ 1002-1460-A Roll Pin                        w/ 1002-1360-KIT Locking Kit
                       I.D. 3/8"           & 1002-1460-B Washer                              supplied fitted as shown
                      Ø9.5 MM             supplied attached as shown   I.D. Ø7/16" / 11 MM  1.9" O.D. x 1.61" I.D. (48 x 41 MM)
                 SUB FOR: PENZ 06-441   MATERIAL: 1-7/8" SOLID STEEL  SUB FOR: PENZ 06-420   MATERIAL: 1-1/2" SCH 40 TUBE
                     FINISH: PRIMER   WEIGHT: 6.95 LBS / 3.15 Kg        FINISH: PRIMER   WEIGHT: 3.6 LBS / 1.63 Kg



                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1002-1                                             2/23/23
