Page 15 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1001-01
[return to Table of Contents]

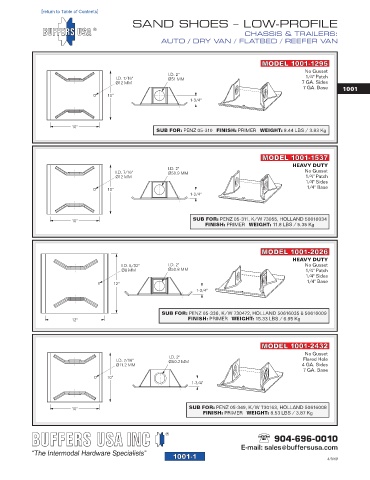

SAND SHOES – LOW-PROFILE
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1001-1295
No Gusset
I.D. 2" 1/4" Patch
I.D. 7/16" Ø51 MM
Ø12 MM 7 GA. Sides
7 GA. Base 1001
10"
1-3/4"

10"
SUB FOR: PENZ 05-310 FINISH: PRIMER WEIGHT: 8.44 LBS / 3.83 Kg

MODEL 1001-1537
HEAVY DUTY
I.D. 2"
I.D. 7/16" Ø50.9 MM No Gusset
Ø12 MM 1/4" Patch
1/4" Sides
10" 1/4" Base
1-3/4"

10" SUB FOR: PENZ 05-311, K/W 73055, HOLLAND 50616034
FINISH: PRIMER WEIGHT: 11.8 LBS / 5.35 Kg

MODEL 1001-2026
HEAVY DUTY
I.D. 5/32" I.D. 2" No Gusset
Ø8 MM Ø50.8 MM 1/4" Patch
1/4" Sides
1/4" Base
12"
1-3/4"

SUB FOR: PENZ 05-336, K/W 730472, HOLLAND 50616035 & 50616009
12" FINISH: PRIMER WEIGHT: 15.33 LBS / 6.95 Kg

MODEL 1001-2432
No Gusset
I.D. 2"
I.D. 7/16" Ø50.2 MM Flared Hole
Ø11.2 MM 4 GA. Sides
7 GA. Base
10"
1-3/4"

10" SUB FOR: PENZ 05-349, K/W 730163, HOLLAND 50616008
FINISH: PRIMER WEIGHT: 8.53 LBS / 3.87 Kg

904-696-0010
E-mail: sales@buffersusa.com
1001-1 4/3/19
