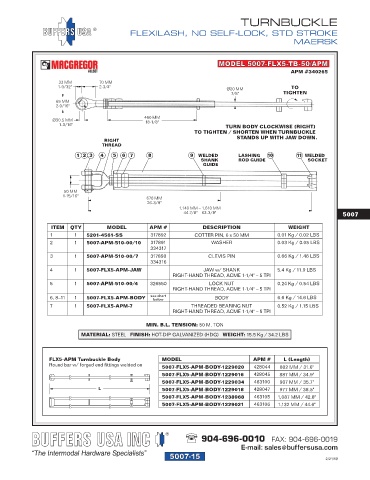

5007-15
TURNBUCKLE

®
FLEXILASH, NO SELF-LOCK, STD STROKE
MAERSK

MODEL 5007-FLX5-TB-50/APM
APM #340265
33 MM 70 MM
1-9/32" 2-3/4" TO
Ø20 MM
7/8" TIGHTEN
65 MM
2-9/16"

460 MM
Ø30.5 MM 18-1/8"
1-3/16" TURN BODY CLOCKWISE (RIGHT)
TO TIGHTEN / SHORTEN WHEN TURNBUCKLE
STANDS UP WITH JAW DOWN.
RIGHT
THREAD
1 2 3 4 5 6 7 8 9 WELDED LASHING 10 11 WELDED
SHANK ROD GUIDE SOCKET
GUIDE

50 MM
1-15/16" 670 MM
26-3/8"
1,140 MM – 1,610 MM
44-7/8" – 63-3/8" 5007

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5201-4561-SS 317892 COTTER PIN, 6 x 50 MM 0.01 Kg / 0.02 LBS
2 1 5007-APM-510-00/10 317891 WASHER 0.03 Kg / 0.05 LBS
334317
3 1 5007-APM-510-00/7 317890 CLEVIS PIN 0.66 Kg / 1.46 LBS
334316
4 1 5007-FLX5-APM-JAW JAW w/ SHANK 5.4 Kg / 11.9 LBS
RIGHT-HAND THREAD, ACME 1-1/4" – 5 TPI
5 1 5007-APM-510-00/4 326550 LOCK NUT 0.24 Kg / 0.54 LBS
RIGHT-HAND THREAD, ACME 1-1/4" – 5 TPI
6, 8–11 1 5007-FLX5-APM-BODY see chart BODY 6.6 Kg / 14.6 LBS
below
7 1 5007-FLX5-APM-7 THREADED BEARING NUT 0.52 Kg / 1.15 LBS
RIGHT-HAND THREAD, ACME 1-1/4" – 5 TPI
MIN. B.L. TENSION: 50 M. TON
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED (HDG) WEIGHT: 15.5 Kg / 34.2 LBS

FLX5-APM Turnbuckle Body MODEL APM # L (Length)
Round bar w/ forged end fittings welded on 5007-FLX5-APM-BODY-1229020 428044 802 MM / 31.6"
5007-FLX5-APM-BODY-1229016 428045 887 MM / 34.9"
5007-FLX5-APM-BODY-1229034 463100 907 MM / 35.7"
L 5007-FLX5-APM-BODY-1229018 428047 977 MM / 38.5"
5007-FLX5-APM-BODY-1238968 463105 1,087 MM / 42.8"
5007-FLX5-APM-BODY-1229021 463106 1,132 MM / 44.6"

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
5007-15 2/21/19
