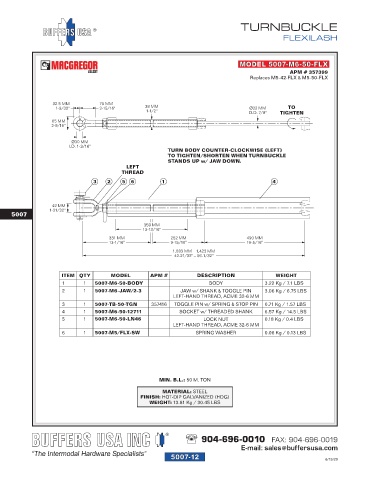

5007-12

TURNBUCKLE

FLEXILASH

MODEL 5007-M6-50-FLX
APM # 357399
Replaces M5-42-FLX & M5-50-FLX

32.5 MM 75 MM
1-9/32" 2-15/16" 38 MM Ø22 MM TO
1-1/2" O.D. 7/8" TIGHTEN
65 MM
2-9/16"

Ø30 MM
I.D. 1-3/16"
TURN BODY COUNTER-CLOCKWISE (LEFT)
TO TIGHTEN/SHORTEN WHEN TURNBUCKLE
STANDS UP w/ JAW DOWN.
LEFT
THREAD
3 2 5 6 1 4

42 MM
1-21/32"
5007
350 MM
13-13/16"
331 MM 252 MM 490 MM
13-1/16" 9-15/16" 19-5/16"
1,083 MM – 1,423 MM
42-21/32" – 56-1/32"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5007-M6-50-BODY BODY 3.22 Kg / 7.1 LBS
2 1 5007-M6-JAW/2-3 JAW w/ SHANK & TOGGLE PIN 3.06 Kg / 6.75 LBS
LEFT-HAND THREAD, ACME 32-6 MM
3 1 5007-TB-50-TGN 357416 TOGGLE PIN w/ SPRING & STOP PIN 0.71 Kg / 1.57 LBS
4 1 5007-M6-50-12711 SOCKET w/ THREADED SHANK 6.57 Kg / 14.5 LBS
5 1 5007-M6-50-LN46 LOCK NUT 0.18 Kg / 0.4 LBS
LEFT-HAND THREAD, ACME 32-6 MM
6 1 5007-M5/FLX-SW SPRING WASHER 0.06 Kg / 0.13 LBS

MIN. B.L.: 50 M. TON
MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 13.81 Kg / 30.45 LBS
