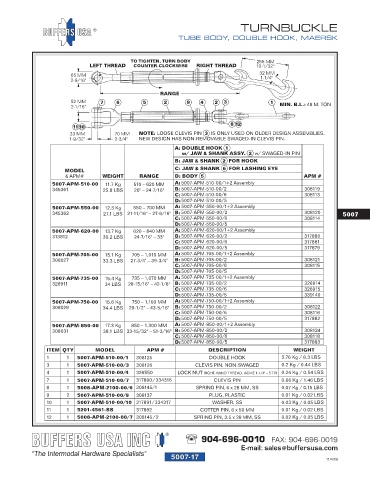

5007-17

TURNBUCKLE
®
TUBE BODY, DOUBLE HOOK, MAERSK

TO TIGHTEN, TURN BODY 255 MM
LEFT THREAD COUNTER-CLOCKWISE RIGHT THREAD 10-1/32"
65 MM 32 MM
1-1/4"
2-9/16"
RANGE
52 MM 7 6 5 2 9 4 2 3 1
2-1/16" MIN. B.L.: 48 M. TON

8 12
1110
33 MM 70 MM NOTE: LOOSE CLEVIS PIN 3 IS ONLY USED ON OLDER DESIGN ASSEMBLIES.
1-9/32" 2-3/4" NEW DESIGN HAS NON-REMOVABLE SWAGED-IN CLEVIS PIN.
A: DOUBLE HOOK 1
w/ JAW & SHANK ASSY. 2 w/ SWAGED-IN PIN
B: JAW & SHANK 2 FOR HOOK

MODEL C: JAW & SHANK 6 FOR LASHING EYE
& APM# WEIGHT RANGE D: BODY 5 APM #
5007-APM-510-00 11.7 Kg 510 – 620 MM A: 5007-APM-510-00/1+2 Assembly
345361 25.8 LBS 20" – 24-7/16" B: 5007-APM-510-00/2 308119
C: 5007-APM-510-00/6 308113
D: 5007-APM-510-00/5
5007-APM-550-00 12.3 Kg 550 – 700 MM A: 5007-APM-550-00/1+2 Assembly
345362 27.1 LBS 21-11/16" – 27-9/16" B: 5007-APM-550-00/2 308120 5007
C: 5007-APM-550-00/6 308114
D: 5007-APM-550-00/5
5007-APM-620-00 13.7 Kg 620 – 840 MM A: 5007-APM-620-00/1+2 Assembly
313812 30.2 LBS 24-7/16" – 33" B: 5007-APM-620-00/2 317880
C: 5007-APM-620-00/6 317881
D: 5007-APM-620-00/5 317879
5007-APM-705-00 15.1 Kg 705 – 1,010 MM A: 5007-APM-705-00/1+2 Assembly
308027 33.3 LBS 27-3/4" – 39-3/4" B: 5007-APM-705-00/2 308121
C: 5007-APM-705-00/6 308115
D: 5007-APM-705-00/5
5007-APM-735-00 15.4 Kg 735 – 1,070 MM A: 5007-APM-735-00/1+2 Assembly
326911 34 LBS 28-15/16" – 42-1/8" B: 5007-APM-735-00/2 326914
C: 5007-APM-735-00/6 326915
D: 5007-APM-735-00/5 339140
5007-APM-750-00 15.6 Kg 750 – 1,100 MM A: 5007-APM-750-00/1+2 Assembly
308028 34.4 LBS 29-1/2" – 43-5/16" B: 5007-APM-750-00/2 308122
C: 5007-APM-750-00/6 308116
D: 5007-APM-750-00/5 317882
5007-APM-850-00 17.3 Kg 850 – 1,300 MM A: 5007-APM-850-00/1+2 Assembly
308031 38.1 LBS 33-15/32" – 51-3/16" B: 5007-APM-850-00/2 308124
C: 5007-APM-850-00/6 308118
D: 5007-APM-850-00/5 317883
ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5007-APM-510-00/1 308125 DOUBLE HOOK 3.76 Kg / 8.3 LBS
3 1 5007-APM-510-00/3 308126 CLEVIS PIN, NON-SWAGED 0.2 Kg / 0.44 LBS
4 1 5007-APM-510-00/4 326550 LOCK NUT RIGHT-HAND THREAD, ACME 1-1/4" – 5 TPI 0.24 Kg / 0.54 LBS
7 1 5007-APM-510-00/7 317890/334316 CLEVIS PIN 0.66 Kg / 1.46 LBS
8 1 5008-APM-2100-00/6 308145/1 SPRING PIN, 6 x 28 MM, SS 0.07 Kg / 0.15 LBS
9 2 5007-APM-510-00/9 308137 PLUG, PLASTIC 0.01 Kg / 0.02 LBS
10 1 5007-APM-510-00/10 317891/334317 WASHER, SS 0.03 Kg / 0.05 LBS
11 1 5201-4561-SS 317892 COTTER PIN, 6 x 50 MM 0.01 Kg / 0.02 LBS
12 1 5008-APM-2100-00/7 308145/2 SPRING PIN, 3.5 x 28 MM, SS 0.02 Kg / 0.05 LBS

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
5007-17 11/4/19
