5007-14

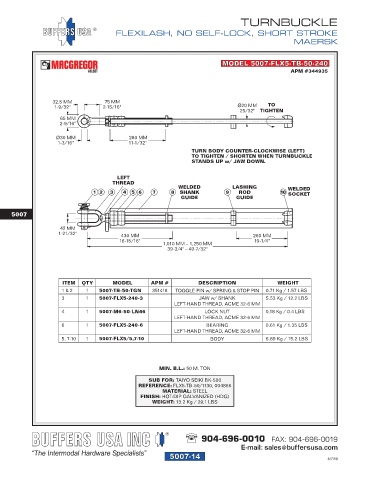

TURNBUCKLE

®
FLEXILASH, NO SELF-LOCK, SHORT STROKE
MAERSK

MODEL 5007-FLX5-TB-50-240
APM #344935

32.5 MM 75 MM
1-9/32" 2-15/16" Ø20 MM TO
25/32" TIGHTEN
65 MM
2-9/16"

Ø 30 MM 280 MM
1-3/16" 11-1/32"
TURN BODY COUNTER-CLOCKWISE (LEFT)
TO TIGHTEN / SHORTEN WHEN TURNBUCKLE
STANDS UP w/ JAW DOWN.

LEFT
THREAD
WELDED LASHING WELDED
1 2 3 4 5 6 7 8 SHANK 9 ROD 10 SOCKET
GUIDE GUIDE

5007

42 MM
1-21/32" 430 MM 260 MM
16-15/16" 10-1/4"
1,010 MM – 1,250 MM
39-3/4" – 49-7/32"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 & 2 1 5007-TB-50-TGN 351416 TOGGLE PIN w/ SPRING & STOP PIN 0.71 Kg / 1.57 LBS
3 1 5007-FLX5-240-3 JAW w/ SHANK 5.53 Kg / 12.2 LBS
LEFT-HAND THREAD, ACME 32-6 MM
4 1 5007-M6-50-LN46 LOCK NUT 0.18 Kg / 0.4 LBS
LEFT-HAND THREAD, ACME 32-6 MM
6 1 5007-FLX5-240-6 BEARING 0.61 Kg / 1.35 LBS
LEFT-HAND THREAD, ACME 32-6 MM
5, 7-10 1 5007-FLX5/5,7-10 BODY 6.89 Kg / 15.2 LBS

MIN. B.L.: 50 M. TON

SUB FOR: TAIYO SEIKI BK-500
REFERENCE: FLX5-TB-50/1130, 004866
MATERIAL: STEEL
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 13.2 Kg / 29.1 LBS

®
