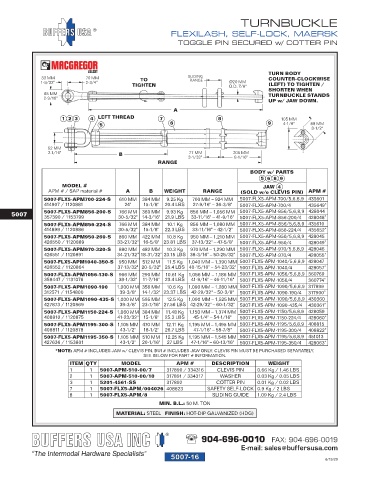

5007-16

TURNBUCKLE
FLEXILASH, SELF-LOCK, MAERSK
TOGGLE PIN SECURED w/ COTTER PIN

TURN BODY
33 MM 70 MM TO SLIDING COUNTER-CLOCKWISE
RANGE
1-9/32" 2-3/4" Ø20 MM
TIGHTEN O.D. 7/8" (LEFT) TO TIGHTEN /
65 MM SHORTEN WHEN
TURNBUCKLE STANDS
2-9/16"
UP w/ JAW DOWN.
A
1 2 3 4 LEFT THREAD 7 8 105 MM
5 6 9 4-1/8" 88 MM
3-1/2"

52 MM
2-1/16" B 77 MM 205 MM
3-1/32" 8-1/16"
RANGE
BODY w/ PARTS
5 6 8 9
MODEL # JAW 4
APM # / SAP material # A B WEIGHT RANGE (SOLD w/o CLEVIS PIN) APM #
5007-FLX5-APM700-224-S 610 MM 384 MM 9.25 Kg 700 MM – 924 MM 5007-FLX5-APM-700/5,6,8,9 435601
414907 / 1120881 24" 15-1/8" 20.4 LBS 27-9/16" – 36-3/8" 5007-FLX5-APM-700/4 435649 *
9.93 Kg
766 MM
360 MM
5007 5007-FLX5-APM856-200-S 30-5/32" 14-3/16" 21.9 LBS 856 MM – 1,056 MM 5007-FLX5-APM-856/5,6,8,9 428044 *
357390 / 1153799
33-11/16" – 41-9/16"
428048
5007-FLX5-APM-856-200/4
5007-FLX5-APM856-224-S 766 MM 384 MM 10.1 Kg 856 MM – 1,080 MM 5007-FLX5-APM-856/5,6,8,9 435610
414899 / 1120886 30-5/32" 15-1/8" 22.3 LBS 33-11/16" – 42-1/2" 5007-FLX5-APM-856-224/4 435652 *
5007-FLX5-APM950-260-S 860 MM 422 MM 10.8 Kg 950 MM – 1,210 MM 5007-FLX5-APM-950/5,6,8,9 428045
426550 / 1120889 33-27/32" 16-5/8" 23.81 LBS 37-13/32" – 47-5/8" 5007-FLX5-APM-950/4 428049 *
5007-FLX5-APM970-320-S 880 MM 482 MM 10.3 Kg 970 MM – 1,290 MM 5007-FLX5-APM-970/5,6,8,9 428046
426551 / 1120891 34-21/32" 18-31/32" 23.15 LBS 38-3/16" – 50-25/32" 5007-FLX5-APM-970/4 428055 *
5007-FLX5-APM1040-350-S 950 MM 512 MM 11.5 Kg 1,040 MM – 1,390 MM 5007-FLX5-APM-1040/5,6,8,9 428047
426552 / 1120864 37-13/32" 20-5/32" 25.4 LBS 40-15/16" – 54-23/32" 5007-FLX5-APM-1040/4 428057 *
5007-FLX5-APM1056-130-S 966 MM 290 MM 10.61 Kg 1,056 MM – 1,186 MM 5007-FLX5-APM-1056/5,6,8,9 360769
358447 / 1131076 38-1/32" 11-7/16" 23.4 LBS 41-9/16" – 46-11/16" 5007-FLX5-APM-1056/4 360774 *
5007-FLX5-APM1090-190 1,000 MM 356 MM 10.6 Kg 1,090 MM – 1,280 MM 5007-FLX5-APM-1090/5,6,8,9 317899
312571 / 1154800 39-3/8" 14-1/32" 23.37 LBS 42-29/32" – 50-3/8" 5007-FLX5-APM-1090-190/4 317900 *
5007-FLX5-APM1090-435-S 1,000 MM 595 MM 12.5 Kg 1,090 MM – 1,525 MM 5007-FLX5-APM-1090/5,6,8,9 430360
427873 / 1120869 39-3/8" 23-7/16" 27.56 LBS 42-29/32" – 60-1/32" 5007-FLX5-APM-1090-435/4 430361 *
5007-FLX5-APM1150-224-S 1,060 MM 384 MM 11.48 Kg 1,150 MM – 1,374 MM 5007-FLX5-APM-1150/5,6,8,9 428059
408810 / 1120875 41-23/32" 15-1/8" 25.3 LBS 45-1/4" – 54-1/16" 5007-FLX5-APM-1150-224/4 428060 *
5007-FLX5-APM1195-300-S 1,105 MM 470 MM 12.11 Kg 1,195 MM – 1,495 MM 5007-FLX5-APM-1195/5,6,8,9 408815
408811 / 1120878 43-1/2" 18-1/2" 26.7 LBS 47-1/16" – 58-7/8" 5007-FLX5-APM-1195-300/4 408822 *
5007-FLX5-APM1195-350-S 1,105 MM 510 MM 12.25 Kg 1,195 MM – 1,545 MM 5007-FLX5-APM-1195/5,6,8,9 451013
427636 / 1153801 43-1/2" 20-1/16" 27 LBS 47-1/16" – 60-13/16" 5007-FLX5-APM-1195-350/4 428063 *
*NOTE: APM # INCLUDES JAW w/ CLEVIS PIN. BUI # INCLUDES JAW ONLY; CLEVIS PIN MUST BE PURCHASED SEPARATELY.
SEE BELOW FOR PART # INFORMATION.
ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5007-APM-510-00/7 317890 / 334316 CLEVIS PIN 0.66 Kg / 1.46 LBS
2 1 5007-APM-510-00/10 317891 / 334317 WASHER 0.03 Kg / 0.05 LBS
3 1 5201-4561-SS 317892 COTTER PIN 0.01 Kg / 0.02 LBS
7 1 5007-FLX5-APM/004026 408823 SAFETY SELF-LOCK 0.9 Kg / 2 LBS
8 1 5007-FLX5-APM/8 SLIDING GUIDE 1.09 Kg / 2.4 LBS
MIN. B.L.: 50 M. TON
MATERIAL: STEEL FINISH: HOT-DIP GALVANIZED (HDG)

904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
5007-16 6/19/20
