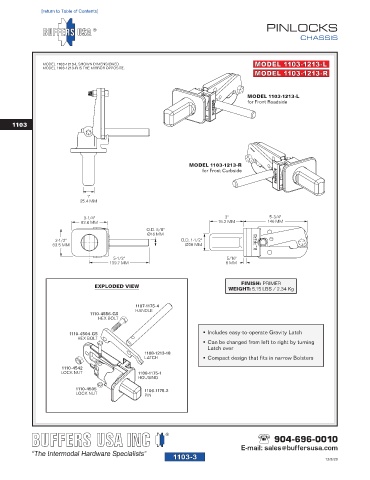

PINLOCKS

CHASSIS

MODEL 1103-1212-R SHOWN DIMENSIONED. MODEL 1103-1212-L
MODEL 1103-1212-L IS THE MIRROR OPPOSITE.
MODEL 1103-1212-R

MODEL 1103-1212-L
O.D. 3/4" for Front Roadside
1103 Ø19.05 MM

MODEL 1103-1212-R
for Front Curbside
O.D. 1-1/2"
Ø38.1 MM
2-3/4" 5"
70 MM 125 MM

O.D. 3-5/32"
Ø80 MM

6-3/16" 9/32" O.D. 3/4"
157.5 MM 7 MM Ø19.05 MM

FINISH: PRIMER
EXPLODED VIEW
WEIGHT: 8.22 LBS / 3.73 Kg
1110-4503
GREASE FITTING
1109-1212-1
HOUSING
1110-1212-28 .
COVER PLATE Heavy-duty design
1110-4509 .
SPLIT ROLL PIN . Handle must be lifted up to lock & unlock
1110-4522-G5 1106-1212-22 Does not require external Latch
HEX BOLT GUIDE PIN
(2 pcs.)
1110-4504
1106-1212-2 HEX BOLT
PIN
1107-1212-4
HANDLE
1110-4505
LOCK NUT

904-696-0010
