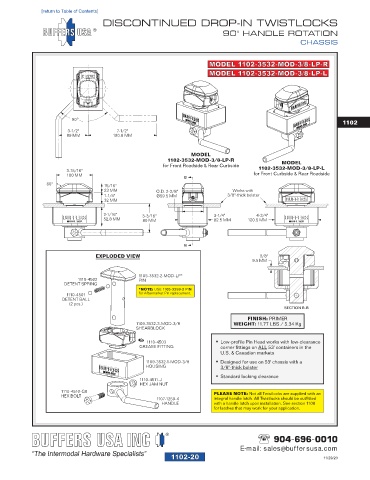

DISCONTINUED DROP-IN TWISTLOCKS
90° HANDLE ROTATION
CHASSIS

MODEL 1102-3532-MOD-3/8-R
MODEL 1102-3532-MOD-3/8-L

90º
1102
3-1/2" 7-1/2"
89 MM 190.8 MM

MODEL
1102-3532-MOD-3/8-R
for Front Roadside & Rear Curbside
MODEL
1102-3532-MOD-3/8-L
3-15/16" for Front Curbside & Rear Roadside
100 MM B
1-1/16"
27 MM O.D. 2-3/8" Works with
1-1/4" Ø59.5 MM 3/8"-thick bolster
32 MM

2-1/16" 3-3/16" 3-1/4" 4-3/4"
52.8 MM 80 MM 82.5 MM 120.5 MM

B
EXPLODED VIEW 3/8"
9.5 MM

1105-3532-2-MOD*
1110-4502 PIN
DETENT SPRING
*NOTE: USE 1105-1257-2 PIN
1110-4501 for Aftermarket Pin replacement.
DETENT BALL
(2 pcs.)
SECTION B-B
FINISH: PRIMER
1109-3532-3-MOD-3/8 WEIGHT: 12.17 LBS / 5.52 Kg
SHEARBLOCK

1110-4503
GREASE FITTING . Pin Head works with standard ISO 1161
corner fittings
. Designed for use on 20' & 40' chassis with
1109-3532-1-MOD-3/8
HOUSING a 3/8"-thick bolster
. Standard locking clearance
1110-4511-J
HEX JAM NUT
1110-4510-G8 PLEASE NOTE: Not all Twistlocks are supplied with an
HEX BOLT
1107-1259-4 integral handle latch. All Twistlocks should be outfitted
HANDLE with a handle latch upon installation. See section 1108
for latches that may work for your application.

904-696-0010
