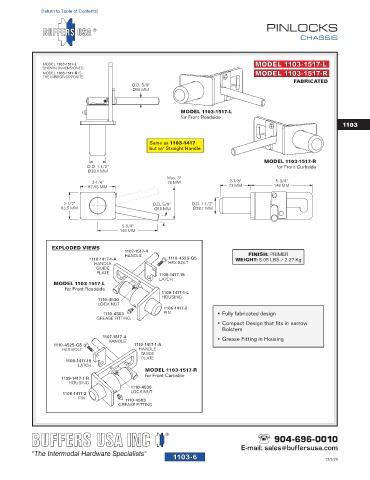

Page 123 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1103-05
[return to Table of Contents]
PINLOCKS

CHASSIS

MODEL 1103-1417-L MODEL 1103-1417-L
SHOWN DIMENSIONED.
MODEL 1103-1417-R IS MODEL 1103-1417-R
THE MIRROR OPPOSITE.
FABRICATED

MODEL 1103-1417-L
for Front Roadside
1103

Same as 1103-1517
but w/ Bent Handle

MODEL 1103-1417-R
O.D. 1-1/2" for Front Curbside
Ø38.1 MM Max. 4-1/16"
103 MM
3-1/4" 2-7/8" 5-3/4"
82.55 MM 73 MM 146 MM
O.D. 5/8"
2-1/2" Ø16 MM O.D. 1-1/2"
63.5 MM Ø38.1 MM

5-1/2"
139.7 MM

EXPLODED VIEWS
1107-1417-4
HANDLE FINISH: PRIMER
1110-1417-1-A 1110-4525-G5 WEIGHT: 5.05 LBS / 2.29 Kg
HANDLE HEX BOLT
GUIDE
PLATE
1108-1417-18
LATCH
MODEL 1103-1417-L
for Front Roadside
1109-1417-1-L
HOUSING .
1110-4530
LOCK NUT Fully fabricated design
1106-1417-2 .
1110-4503 PIN Meets Maersk specification for
.
GREASE FITTING interchangeability
1107-1417-4 Compact Design that fits in narrow
Bolsters
HANDLE .
1110-4525-G5 1110-1417-1-A Grease Fitting in Housing
HEX BOLT HANDLE
GUIDE
PLATE
1108-1417-18
LATCH
MODEL 1103-1417-R
for Front Curbside
1109-1417-1-R
HOUSING
1110-4530
1106-1417-2 LOCK NUT
PIN 1110-4503
GREASE FITTING

904-696-0010
