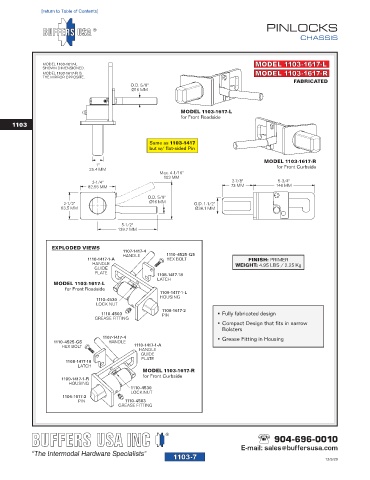

Page 124 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1103-06
[return to Table of Contents]
PINLOCKS

CHASSIS

MODEL 1103-1517-L MODEL 1103-1517-L
SHOWN DIMENSIONED.
MODEL 1103-1517-R IS MODEL 1103-1517-R
THE MIRROR OPPOSITE.
FABRICATED
O.D. 5/8"
Ø16 MM

MODEL 1103-1517-L
for Front Roadside
1103

Same as 1103-1417
but w/ Straight Handle

MODEL 1103-1517-R
O.D. 1-1/2" for Front Curbside
Ø38.1 MM
Max. 3"
3-1/4" 76 MM 2-7/8" 5-3/4"
82.55 MM 73 MM 146 MM

2-1/2" O.D. 5/8" O.D. 1-1/2"
63.5 MM Ø16 MM Ø38.1 MM

5-3/4"
146 MM

EXPLODED VIEWS
1107-1517-4
HANDLE FINISH: PRIMER
1110-1417-1-A 1110-4525-G5 WEIGHT: 5.05 LBS / 2.27 Kg
HANDLE HEX BOLT
GUIDE
PLATE
1108-1417-18
LATCH
MODEL 1103-1517-L
for Front Roadside
1109-1417-1-L
HOUSING
1110-4530
LOCK NUT
1106-1417-2 .
1110-4503 PIN Fully fabricated design
GREASE FITTING . Compact Design that fits in narrow
. Bolsters
1107-1517-4 Grease Fitting in Housing
HANDLE
1110-4525-G5 1110-1417-1-A
HEX BOLT HANDLE
GUIDE
PLATE
1108-1417-18
LATCH
MODEL 1103-1517-R
for Front Curbside
1109-1417-1-R
HOUSING
1110-4530
1106-1417-2 LOCK NUT
PIN 1110-4503
GREASE FITTING

904-696-0010
E-mail: sales@buffersusa.com
1103-6 12/9/20
