P. 39

1006-03
               [return to Table of Contents]

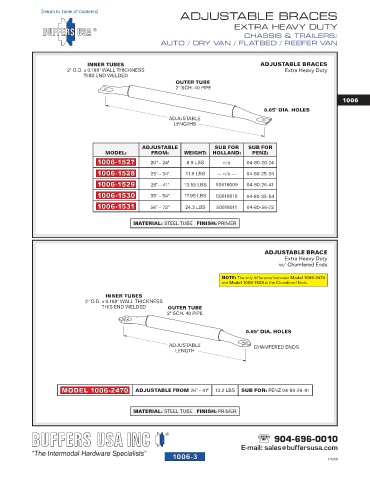

                                                             ADJUSTABLE BRACES
                                                                              EXTRA HEAVY DUTY
                                                                                  CHASSIS & TRAILERS:
                                                      AUTO / DRY VAN / FLATBED / REEFER VAN



                              INNER TUBES                                              ADJUSTABLE BRACES
                       2" O.D. x 0.188" WALL THICKNESS                                         Extra Heavy Duty
                             THIS END WELDED
                                                           OUTER TUBE
                                                           2" SCH. 40 PIPE
                                                                                                                  1006
                                                                                        0.65" DIA. HOLES
                                                         ADJUSTABLE
                                                          LENGTHS



                                                ADJUSTABLE              SUB FOR    SUB FOR
                                    MODEL:         FROM:      WEIGHT:  HOLLAND:     PENZ:
                                 1006-1527         20" – 24"   8.9 LBS   — n/a —   04-80-20-24

                                 1006-1528         25" – 34"  11.9 LBS   — n/a —   04-80-25-34
                                 1006-1529         26" – 41"  13.55 LBS  50618009  04-80-26-41
                                 1006-1530         35" – 54"  17.95 LBS  50618010  04-80-35-54

                                 1006-1531         56" – 72"  24.3 LBS   50618011  04-80-56-72


                                             MATERIAL: STEEL TUBE   FINISH: PRIMER



                                                                                         ADJUSTABLE BRACE
                                                                                               Extra Heavy Duty
                                                                                             w/ Chamfered Ends

                                                                          NOTE: The only difference between Model 1006-2470
                                                                          and Model 1006-1529 is the Chamfered Ends.
                                    INNER TUBES
                             2" O.D. x 0.188" WALL THICKNESS
                                   THIS END WELDED       OUTER TUBE
                                                        2" SCH. 40 PIPE


                                                                                  0.65" DIA. HOLES

                                                         ADJUSTABLE                  CHAMFERED ENDS
                                                           LENGTH






                     MODEL 1006-2470          ADJUSTABLE FROM 26" – 41"  13.2 LBS  SUB FOR: PENZ 04-80-26-41


                                             MATERIAL: STEEL TUBE   FINISH: PRIMER




                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1006-3                                             1/4/19
