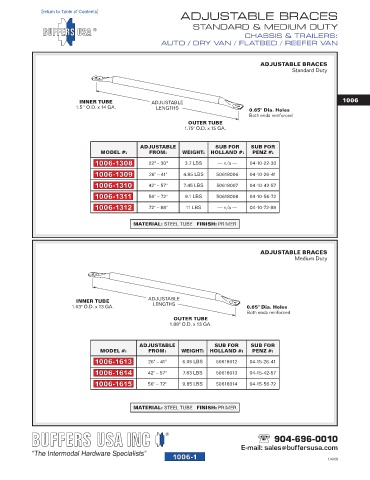

Page 37 - Buffers USA 2024 Trailer Hardware Catalog FlipBook
P. 37

1006-01
               [return to Table of Contents]
                                                             ADJUSTABLE BRACES
                                                                 STANDARD & MEDIUM DUTY
                                                                                  CHASSIS & TRAILERS:
                                                      AUTO / DRY VAN / FLATBED / REEFER VAN


                                                                                       ADJUSTABLE BRACES
                                                                                                  Standard Duty




                           INNER TUBE              ADJUSTABLE                                                     1006
                          1.5 " O.D. x 14 GA.        LENGTHS                       0.65" Dia. Holes
                                                                                   Both ends reinforced
                                                               OUTER TUBE
                                                              1.75" O.D. x 15 GA.


                                               ADJUSTABLE               SUB FOR     SUB FOR
                                  MODEL #:        FROM:      WEIGHT:   HOLLAND #:    PENZ #:
                                1006-1308         22" – 30"   3.7 LBS    — n/a —    04-10-22-30
                                1006-1309         26" – 41"   4.85 LBS   50618006   04-10-26-41
                                1006-1310         42" – 57"   7.45 LBS   50618007   04-10-42-57

                                1006-1311         56" – 72"   9.1 LBS    50618008   04-10-56-72
                                1006-1312         72" – 88"   11 LBS     — n/a —    04-10-72-88


                                             MATERIAL: STEEL TUBE   FINISH: PRIMER



                                                                                       ADJUSTABLE BRACES
                                                                                                   Medium Duty







                          INNER TUBE              ADJUSTABLE
                         1.63" O.D. x 13 GA.        LENGTHS                        0.65" Dia. Holes
                                                                                   Both ends reinforced
                                                          OUTER TUBE
                                                         1.88" O.D. x 13 GA.



                                               ADJUSTABLE               SUB FOR     SUB FOR
                                  MODEL #:        FROM:      WEIGHT:  HOLLAND #:    PENZ #:
                                1006-1613         26" – 41"  6.05 LBS   50618012    04-15-26-41
                                1006-1614         42" – 57"  7.83 LBS   50618013    04-15-42-57
                                1006-1615         56" – 72"  9.85 LBS    50618014   04-15-56-72




                                             MATERIAL: STEEL TUBE   FINISH: PRIMER
