Page 42 - Buffers USA 2024 Trailer Hardware Catalog FlipBook
P. 42

1006-06
               [return to Table of Contents]

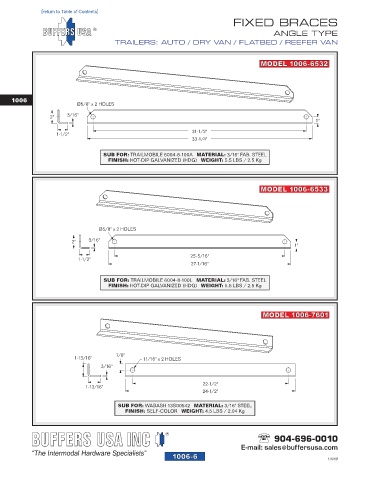

                                                                              FIXED BRACES
                                                                                            ANGLE TYPE
                                       TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN


                                                                                       MODEL 1006-6532






     1006
                          Ø5/8" x 2 HOLES

                  2"   3/16"
                                                                                                         1"
                                                                 31-1/2"
                    1-1/2"
                                                                 33-1/4"
                                   SUB FOR: TRAILMOBILE 6004-8-100A   MATERIAL: 3/16" FAB. STEEL
                                     FINISH: HOT-DIP GALVANIZED (HDG)   WEIGHT: 5.5 LBS / 2.5 Kg




                                                                                       MODEL 1006-6533







                                  Ø5/8" x 2 HOLES
                         2"   3/16"
                                                                                                  1"
                                                                25-5/16"
                           1-1/2"
                                                                27-1/16"

                                   SUB FOR: TRAILMOBILE 6004-8-100L   MATERIAL: 3/16" FAB. STEEL
                                     FINISH: HOT-DIP GALVANIZED (HDG)   WEIGHT: 5.5 LBS / 2.5 Kg




                                                                                        MODEL 1006-7601







                                       7/8"
                          1-13/16"              11/16" x 2 HOLES
                                  3/16"


                                                                    22-1/2"
                             1-13/16"
                                                                    24-1/2"
                                        SUB FOR: WABASH 13S00542   MATERIAL: 3/16" STEEL
                                          FINISH: SELF-COLOR   WEIGHT: 4.5 LBS / 2.04 Kg




                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1006-6                                             1/4/19
