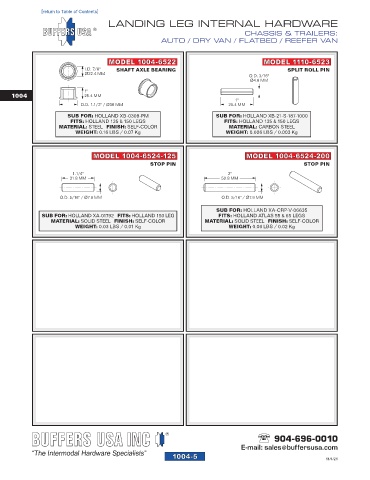

P. 34

1004-05
               [return to Table of Contents]
                                     LANDING LEG INTERNAL HARDWARE
                                                                                  CHASSIS & TRAILERS:
                                                      AUTO / DRY VAN / FLATBED / REEFER VAN


                                     MODEL 1004-6522                                    MODEL 1110-6523
                             I.D. 7/8"  SHAFT AXLE BEARING                                      SPLIT ROLL PIN
                             Ø22.4 MM
                                                                                   O.D. 3/16"
                                                                                    Ø4.8 MM
                             1"
     1004                    25.4 MM
                                                                               1"
                            O.D. 1-1/2" / Ø38 MM                             25.4 MM
                       SUB FOR: HOLLAND XB-0308-PM                      SUB FOR: HOLLAND XB-21-S-187-1000
                        FITS: HOLLAND 135 & 150 LEGS                       FITS: HOLLAND 135 & 150 LEGS
                    MATERIAL: STEEL   FINISH: SELF-COLOR                     MATERIAL: CARBON STEEL
                          WEIGHT: 0.16 LBS / 0.07 Kg                        WEIGHT: 0.006 LBS / 0.003 Kg


                                MODEL 1004-6524-125                               MODEL 1004-6524-200
                                                   STOP PIN                                           STOP PIN
                         1-1/4"                                             2"
                        31.8 MM                                           50.8 MM


                     O.D. 5/16" / Ø7.9 MM                                 O.D. 5/16" / Ø7.9 MM

                                                                         SUB FOR: HOLLAND XA-CRP-V-06635
               SUB FOR: HOLLAND XA-01792   FITS: HOLLAND 150 LEG         FITS: HOLLAND ATLAS 55 & 65 LEGS
                  MATERIAL: SOLID STEEL   FINISH: SELF-COLOR         MATERIAL: SOLID STEEL   FINISH: SELF-COLOR
                          WEIGHT: 0.03 LBS / 0.01 Kg                         WEIGHT: 0.06 LBS / 0.02 Kg










































                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1004-5                                             11/4/21
