1006-04
               [return to Table of Contents]

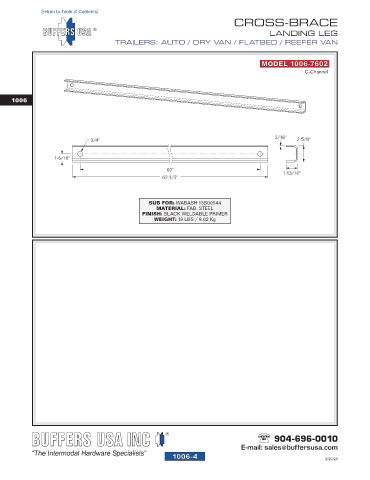

                                                                              CROSS-BRACE
                                                                                          LANDING LEG
                                       TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN


                                                                                       MODEL 1006-7602
                                                                                                      C-Channel




     1006






                                                                                            3/16"
                               3/4"                                                                2-5/8"

                   1-5/16"
                                                        60"                                    1-13/16"
                                                       62-1/2"



                                                  SUB FOR: WABASH 13S00544
                                                     MATERIAL: FAB. STEEL
                                                FINISH: BLACK WELDABLE PRIMER
                                                    WEIGHT: 19 LBS / 8.62 Kg











































                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1006-4                                             2/20/20
