P. 44

1006-08
               [return to Table of Contents]

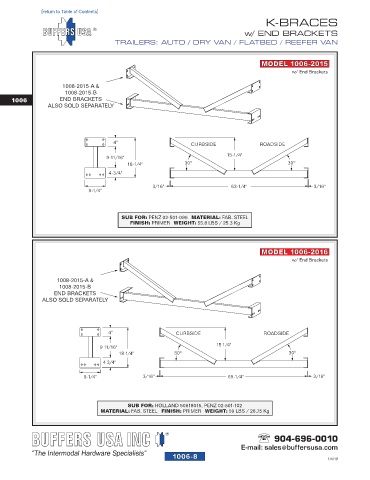

                                                                                         K-BRACES
                                                                                  w/ END BRACKETS
                                       TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN


                                                                                        MODEL 1006-2015
                                                                                                  w/ End Brackets

                      1008-2015-A &
                      1008-2015-B
     1006            END BRACKETS
                 ALSO SOLD SEPARATELY






                                       4"                       CURBSIDE               ROADSIDE
                                                                            15-1/4"
                                    9-11/16"
                                           18-1/4"            30º                               30º
                                     4-3/4"

                                                   3/16"                      63-1/4"                    3/16"
                              9-1/4"



                                         SUB FOR: PENZ 02-501-096   MATERIAL: FAB. STEEL
                                            FINISH: PRIMER   WEIGHT: 55.8 LBS / 25.3 Kg




                                                                                       MODEL 1006-2016
                                                                                                  w/ End Brackets


                    1008-2015-A &
                     1008-2015-B
                   END BRACKETS
               ALSO SOLD SEPARATELY





                                     4"                    CURBSIDE                     ROADSIDE
                                                                         15 1/4"
                                  9 11/16"
                                        18 1/4"            30º                                   30º
                                   4 3/4"

                             9-1/4"             3/16"                       69-1/4"                      3/16"




                                           SUB FOR: HOLLAND 50618015, PENZ 02-501-102
                                  MATERIAL: FAB. STEEL   FINISH: PRIMER   WEIGHT: 59 LBS / 26.75 Kg




                                                                                            904-696-0010
                                                                                 E-mail: sales@buffersusa.com
                                                          1006-8                                             1/4/19
