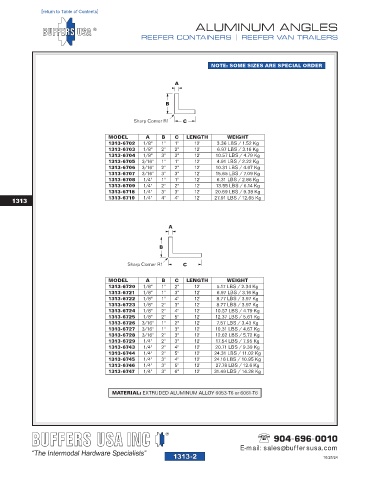

Page 304 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1313-02
[return to Table of Contents]
ALUMINUM ANGLES

REEFER CONTAINERS | REEFER VAN TRAILERS

NOTE: SOME SIZES ARE SPECIAL ORDER

A

B

Sharp Corner R1 C

MODEL A B C LENGTH WEIGHT
1313-6702 1/8" 1" 1" 12' 3.36 LBS / 1.52 Kg
1313-6703 1/8" 2" 2" 12' 6.97 LBS / 3.16 Kg
1313-6704 1/8" 3" 3" 12' 10.57 LBS / 4.79 Kg
1313-6705 3/16" 1" 1" 12' 4.91 LBS / 2.22 Kg
1313-6706 3/16" 2" 2" 12' 10.31 LBS / 4.67 Kg
1313-6707 3/16" 3" 3" 12' 15.65 LBS / 7.09 Kg
1313-6708 1/4" 1" 1" 12' 6.31 LBS / 2.86 Kg
1313-6709 1/4" 2" 2" 12' 13.55 LBS / 6.14 Kg
1313-6718 1/4" 3" 3" 12' 20.69 LBS / 9.38 Kg
1313 1313-6719 1/4" 4" 4" 12' 27.91 LBS / 12.65 Kg

A

B

Sharp Corner R1 C

MODEL A B C LENGTH WEIGHT
1313-6720 1/8" 1" 2" 12' 5.17 LBS / 2.34 Kg
1313-6721 1/8" 1" 3" 12' 6.97 LBS / 3.16 Kg
1313-6722 1/8" 1" 4" 12' 8.77 LBS / 3.97 Kg
1313-6723 1/8" 2" 3" 12' 8.77 LBS / 3.97 Kg
1313-6724 1/8" 2" 4" 12' 10.57 LBS / 4.79 Kg
1313-6725 1/8" 2" 5" 12' 12.37 LBS / 5.61 Kg
1313-6726 3/16" 1" 2" 12' 7.57 LBS / 3.43 Kg
1313-6727 3/16" 1" 3" 12' 10.31 LBS / 4.67 Kg
1313-6728 3/16" 2" 3" 12' 12.62 LBS / 5.72 Kg
1313-6729 1/4" 2" 3" 12' 17.54 LBS / 7.95 Kg
1313-6743 1/4" 2" 4" 12' 20.71 LBS / 9.39 Kg
1313-6744 1/4" 2" 5" 12' 24.31 LBS / 11.02 Kg
1313-6745 1/4" 3" 4" 12' 24.16 LBS / 10.95 Kg
1313-6746 1/4" 3" 5" 12' 27.78 LBS / 12.6 Kg
1313-6747 1/4" 3" 6" 12' 31.49 LBS / 14.28 Kg

MATERIAL: EXTRUDED ALUMINUM ALLOY 6053-T6 or 6061-T6

904-696-0010

E-mail: sales@buffersusa.com
1313-2 10/25/24
