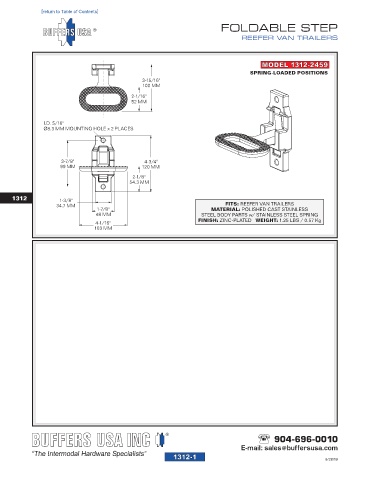

FOLDABLE STEP

REEFER VAN TRAILERS

MODEL 1312-2459
SPRING-LOADED POSITIONS
3-15/16"
100 MM
2-1/16"
52 MM

I.D. 5/16"
Ø8.3 MM MOUNTING HOLE x 2 PLACES

3-7/8" 4-3/4"
99 MM 120 MM
2-1/8"
54.3 MM

1312 1-3/8"
34.7 MM FITS: REEFER VAN TRAILERS
1-7/8" MATERIAL: POLISHED CAST STAINLESS
48 MM STEEL BODY PARTS w/ STAINLESS STEEL SPRING
FINISH: ZINC-PLATED WEIGHT: 1.25 LBS / 0.57 Kg
4-1/16"
103 MM
