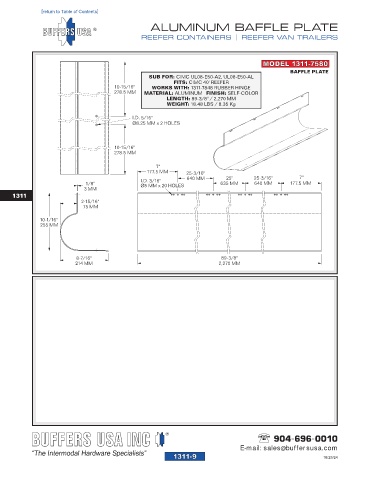

ALUMINUM BAFFLE PLATE

REEFER CONTAINERS | REEFER VAN TRAILERS

MODEL 1311-7580
BAFFLE PLATE
SUB FOR: CIMC UL08-E50-A2, UL08-E50-AL
FITS: CIMC 40' REEFER
10-15/16" WORKS WITH: 1311-7848 RUBBER HINGE
278.5 MM MATERIAL: ALUMINUM FINISH: SELF-COLOR
LENGTH: 89-3/8" / 2,270 MM
WEIGHT: 18.48 LBS / 8.35 Kg

I.D. 5/16"
Ø8.25 MM x 2 HOLES

10-15/16"
278.5 MM

7"
177.5 MM 25-3/16"
I.D. 3/16" 640 MM 25" 25-3/16" 7"
1/8" Ø5 MM x 20 HOLES 635 MM 640 MM 177.5 MM
3 MM
1311
2-15/16"
75 MM

10-1/16"
255 MM

8-7/16" 89-3/8"
214 MM 2,270 MM
