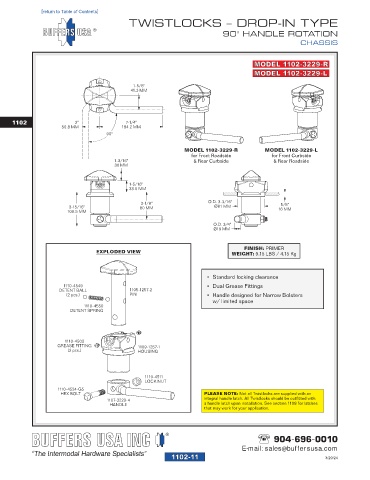

TWISTLOCKS – DROP-IN TYPE
90° HANDLE ROTATION
CHASSIS

SPECIAL ORDER ONLY MODEL 1102-1691

2-1/4"
57 MM
1102

3-27/32"
98 MM

1-3/16"
30 MM

5/8" 1-7/16"
16 MM 36.5 MM

1-11/16"
43 MM 2-13/32"
61.5 MM O.D. 5/8"
Ø16 MM
4"
101.6 MM

FINISH: PRIMER
EXPLODED VIEW WEIGHT: 7.57 LBS / 3.43 Kg

1105-1691-2
PIN
1110-4501 .
DETENT BALL Designed for Front Bolsters
(2 pcs.)
1110-4502 w/ limited space
DETENT .
.
SPRING High locking clearance
. Dual Grease Fittings

1110-4503 . Weld chamfer on Housing
GREASE FITTING 1109-1690-1 Designed to hang straight for welding
(2 pcs.) HOUSING

1110-4769-G8
1110-4511 HEX BOLT
LOCK NUT
PLEASE NOTE: Not all Twistlocks are supplied with an
1107-1691-4 integral handle latch. All Twistlocks should be outfitted
HANDLE with a handle latch upon installation. See section 1108
for latches that may work for your application.
