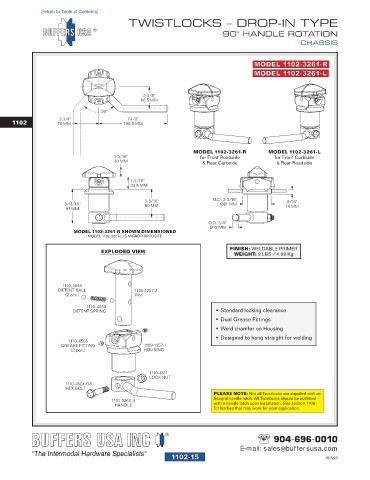

TWISTLOCKS – DROP-IN TYPE
90° HANDLE ROTATION, LOW PROFILE
CHASSIS

MODEL 1102-3260-R
MODEL 1102-3260-L

2-3/8"
60.5 MM
90º
1102 2-3/4" 7-1/2"
70 MM 190.5 MM

MODEL 1102-3260-R MODEL 1102-3260-L
for Front Roadside for Front Curbside
15/16" & Rear Curbside & Rear Roadside
23.8 MM

1-5/16"
33.5 MM

3-3/16" O.D. 3-3/16" 9/16"
3-13/16" 80 MM Ø81 MM 14 MM
97 MM
O.D. 3/4"
Ø19 MM

FINISH: PRIMER
EXPLODED VIEW
WEIGHT: 9.5 LBS / 4.31 Kg

1110-4549
DETENT BALL 1105-3259-2
(2 pcs.) PIN .
1110-4550 . Standard locking clearance
DETENT SPRING Low-profile Head for shallow
. Dual Grease Fittings
Container Fittings
.
1110-4503 . Weld chamfer on Housing
GREASE FITTING 1109-1257-1
(2 pcs.) HOUSING Designed to hang straight for welding

1110-4524-G5
HEX BOLT

1110-4511
LOCK NUT PLEASE NOTE: Not all Twistlocks are supplied with an
integral handle latch. All Twistlocks should be outfitted
1107-3260-4
HANDLE with a handle latch upon installation. See section 1108
for latches that may work for your application.
