5002-08

SEMI-AUTOMATIC TWISTLOCK

DUAL-FUNCTION

MODEL 5002-CV-20G-F
FORGED STEM SAP 1238334
SPECIAL ORDER ONLY MODEL 5002-CV-20G-L-F
LIFTLOCK w/ FORGED STEM

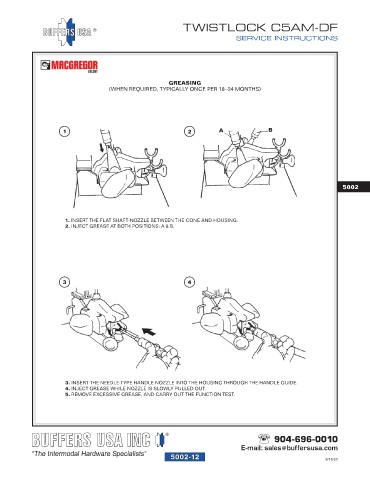

9 LUBRICATION SAP 1281334
POINTS
54 MM
87 MM 2-1/8"
3-7/16"
33 MM
1-5/16"
202 MM 28 MM
7-31/32" 1-3/32"
33 MM
1 1-5/16"
2
87 MM
3-7/16" 54 MM
9 2-1/8"
5002
LUBRICATION 181 MM
HOLES
7-1/8" 3 5 4 6 9
7

138 MM
8
5-7/16"

WEARING INDICATOR 9
3 LUBRICATION POINTS
5002-CV-20G-L-F
Liftlock certified for VTL up to 10 metric tons SWL
per lock. 100% proofloaded to 25 metric tons.
Available as SPECIAL ORDER ONLY.
SWL PL MBS
SAFETY FACTOR WLL TENSION, kN 250 375 500
FOR LIFT 5 : 1 10 M. Ton SHEAR, kN 210 315 420
FOR LASHING 2 : 1 25 M. Ton COMPRESSION, kN 1,150 1,438 2,000

ITEM QTY. MODEL DESCRIPTION WEIGHT / EA.
1 4 5002-CV-20-1033080 Socket Head Cap Screw, M10 0.03 Kg / 0.07 LBS
2 4 1110-4521 Hex Nut w/ Nylon Insert (1080141) 0.01 Kg / 0.02 LBS
3 2 5002-CV-20-1093159 Handle, Stainless Steel 0.06 Kg / 0.14 LBS
4 1 5002-CV-20-1010778 Compression Spring, Stainless Steel 0.02 Kg / 0.04 LBS
5 1 5002-CV-20-1010781 Stabilizer/Spring Guide, Plastic 0.01 Kg / 0.01 LBS
6 1 5002-CV-20-1010776 Pressure Element, Plastic 0.01 Kg / 0.03 LBS
7 1 5002-CV-20-1066028 Hose/Tube Cover, 7/8" x 9/16", Plastic 0.01 Kg / 0.01 LBS
8 2 5002-CV-20-K104796 Housing Half, Non-handed 1.83 Kg / 4.04 LBS
9 1 5002-CV-20-1242663 Stem/Shaft, Forged Steel 2 Kg / 4.41 LBS
FINISH: HOT-DIP GALVANIZED (HDG) WEIGHT: 6 Kg / 13.2 LBS

904-696-0010
E-mail: sales@buffersusa.com
5002-8 5/4/22
