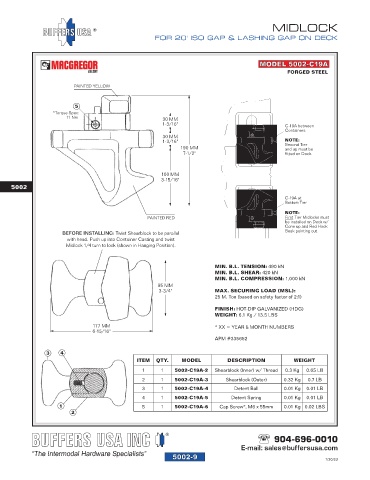

5002-09

MIDLOCK

FOR 20' ISO GAP & LASHING GAP ON DECK

MODEL 5002-C19A
FORGED STEEL

PAINTED YELLOW

5
*Torque Spec:
11 Nm 30 MM
1-3/16" C-19A between
Containers
30 MM
1-3/16" NOTE:
190 MM Second Tier
and up must be
7-1/2" fitted on Dock.

100 MM
3-15/16"
5002
C-19A at
Bottom Tier
NOTE:
PAINTED RED First Tier Midlocks must
be installed on Deck w/
Cone up and Red Hook
BEFORE INSTALLING: Twist Shearblock to be parallel Beak pointing out.
with head. Push up into Container Casting and twist
Midlock 1/4 turn to lock (shown in Hanging Position).

MIN. B.L. TENSION: 490 kN
MIN. B.L. SHEAR: 420 kN
MIN. B.L. COMPRESSION: 1,000 kN
95 MM
3-3/4" MAX. SECURING LOAD (MSL):
25 M. Ton (based on safety factor of 2:1)
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 6.1 Kg / 13.5 LBS

177 MM * XX = YEAR & MONTH NUMBERS
6-15/16"
APM #335652

3 4
ITEM QTY. MODEL DESCRIPTION WEIGHT
1 1 5002-C19A-2 Shearblock (Inner) w/ Thread 0.3 Kg 0.65 LB
2 1 5002-C19A-3 Shearblock (Outer) 0.32 Kg 0.7 LB
3 1 5002-C19A-4 Detent Ball 0.01 Kg 0.01 LB
4 1 5002-C19A-5 Detent Spring 0.01 Kg 0.01 LB
1 5 1 5002-C19A-6 Cap Screw*, M6 x 55mm 0.01 Kg 0.02 LBS
2

904-696-0010
E-mail: sales@buffersusa.com
5002-9 1/30/23
