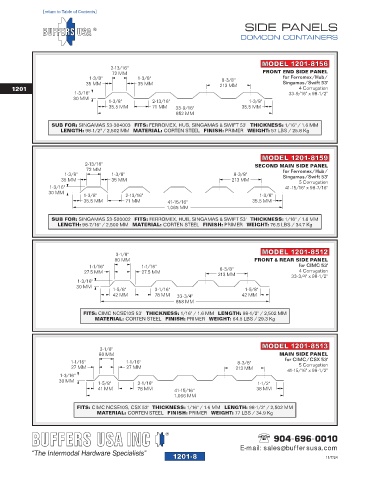

Page 22 - Buffers USA 2024 Container Hardware Catalog FlipBook

1201-08
[return to Table of Contents]
SIDE PANELS

DOMCON CONTAINERS

MODEL 1201-8156
2-13/16" FRONT END SIDE PANEL
72 MM
1-3/8" 1-3/8" for Ferromex/Hub/
35 MM 35 MM 8-3/8" Singamas/Swift 53'
1201 213 MM 4 Corrugation
1-3/16" 33-9/16" x 98-1/2"
30 MM
1-3/8" 2-13/16" 1-3/8"
35.5 MM 71 MM 33-9/16" 35.5 MM
852 MM
SUB FOR: SINGAMAS 53-304003 FITS: FERROMEX, HUB, SINGAMAS & SWIFT 53' THICKNESS: 1/16" / 1.6 MM
LENGTH: 98-1/2" / 2,502 MM MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 57 LBS / 25.8 Kg

SPECIAL ORDER ONLY MODEL 1201-8157
2-13/16"
72 MM REAR END SIDE PANEL
1-3/8" 1-3/8" 8-3/8" for Ferromex/Hub/
Singamas/Swift 53'
35 MM 35 MM 213 MM 4 Corrugation
1-3/16" 33-1/16" x 98-1/2"
30 MM
7/8" 2-13/16" 1-3/8"
23 MM 71 MM 33-1/16" 35 MM
839 MM
SUB FOR: SINGAMAS 53-404001 FITS: FERROMEX, HUB, SINGAMAS & SWIFT 53' THICKNESS: 1/16" / 1.6 MM
LENGTH: 98-1/2" / 2,502 MM MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 58 LBS / 26.3 Kg

MODEL 1201-8159
2-13/16" SECOND MAIN SIDE PANEL
72 MM for Ferromex/Hub/
1-3/8" 1-3/8" 8-3/8" Singamas/Swift 53'
35 MM 35 MM 213 MM 5 Corrugation
1-3/16" 41-15/16" x 98-7/16"
30 MM 1-3/8" 2-13/16" 1-3/8"
35.5 MM 71 MM 41-15/16" 35.5 MM
1,065 MM
SUB FOR: SINGAMAS 53-500002 FITS: FERROMEX, HUB, SINGAMAS & SWIFT 53' THICKNESS: 1/16" / 1.6 MM
LENGTH: 98-7/16" / 2,500 MM MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 76.5 LBS / 34.7 Kg

MODEL 1201-8512
3-1/8" FRONT & REAR SIDE PANEL
80 MM for CIMC 53'
1-1/16" 1-1/16" 8-3/8" 4 Corrugation
27.5 MM 27.5 MM 213 MM 33-3/4" x 98-1/2"
1-3/16"
30 MM
1-5/8" 3-1/16" 1-5/8"
42 MM 78 MM 33-3/4" 42 MM
858 MM

FITS: CIMC NCSE10S 53' THICKNESS: 1/16" / 1.6 MM LENGTH: 98-1/2" / 2,502 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 64.5 LBS / 29.3 Kg

904-696-0010
E-mail: sales@buffersusa.com
1201-8 3/2/23
