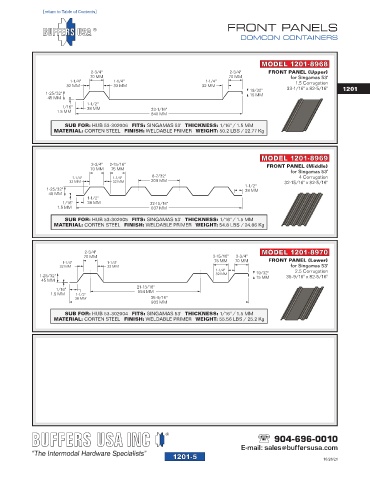

Page 19 - Buffers USA 2024 Container Hardware Catalog FlipBook

1201-05
[return to Table of Contents]
FRONT PANELS

DOMCON CONTAINERS

MODEL 1201-8968
2-3/4" 2-3/4" FRONT PANEL (Upper)
70 MM 70 MM for Singamas 53'
1-1/4" 1-1/4" 1-1/4" 1.5 Corrugation
32 MM 32 MM 32 MM
19/32" 33-1/16" x 82-5/16" 1201
1-25/32" 15 MM
45 MM
1-1/2"
1/16" 38 MM
1.5 MM 33-1/16"
840 MM
SUB FOR: HUB 53-302006 FITS: SINGAMAS 53' THICKNESS: 1/16" / 1.5 MM
MATERIAL: CORTEN STEEL FINISH: WELDABLE PRIMER WEIGHT: 50.2 LBS / 22.77 Kg

MODEL 1201-8969
2-3/4" 2-15/16" FRONT PANEL (Middle)
70 MM 75 MM for Singamas 53'
8-7/32"
1-1/4" 1-1/4" 4 Corrugation
32 MM 32 MM 209 MM 32-15/16" x 82-5/16"
1-1/2"
1-25/32" 38 MM
45 MM
1-1/2"
1/16" 38 MM 32-15/16"
1.5 MM 837 MM
SUB FOR: HUB 53-302005 FITS: SINGAMAS 53' THICKNESS: 1/16" / 1.5 MM
MATERIAL: CORTEN STEEL FINISH: WELDABLE PRIMER WEIGHT: 54.8 LBS / 24.86 Kg

2-3/4" MODEL 1201-8970
70 MM 2-15/16" 2-3/4"
1-1/4" 1-1/4" 75 MM 70 MM FRONT PANEL (Lower)
32 MM 32 MM for Singamas 53'
1-1/4" 19/32" 2.5 Corrugation
1-25/32" 32 MM 15 MM 35-9/16" x 82-5/16"
45 MM
21-13/16"
1/16" 554 MM
1.5 MM 1-1/2"
38 MM 35-9/16"
903 MM
SUB FOR: HUB 53-302004 FITS: SINGAMAS 53' THICKNESS: 1/16" / 1.5 MM
MATERIAL: CORTEN STEEL FINISH: WELDABLE PRIMER WEIGHT: 55.56 LBS / 25.2 Kg
