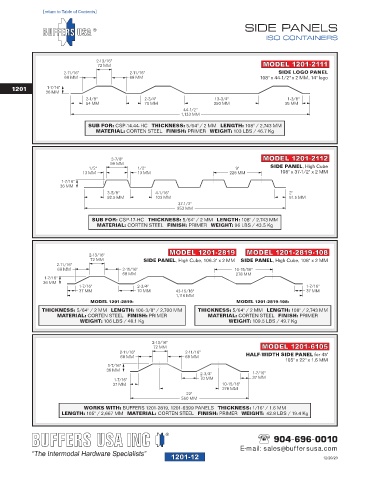

Page 26 - Buffers USA 2024 Container Hardware Catalog FlipBook

1201-12
[return to Table of Contents]
SIDE PANELS

ISO CONTAINERS

2-13/16"
72 MM MODEL 1201-2111
2-11/16" 2-11/16" SIDE LOGO PANEL
68 MM 68 MM 108" x 44-1/2" x 2 MM, 14" logo

1201 1-7/16"
36 MM
2-1/8" 2-3/4" 13-3/4" 1-3/8"
54 MM 70 MM 350 MM 35 MM
44-1/2"
1,133 MM
SUB FOR: CSP-14.44-HC THICKNESS: 5/64" / 2 MM LENGTH: 108" / 2,743 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 103 LBS / 46.7 Kg

3-7/8" MODEL 1201-2112
99 MM
1/2" 1/2" 9" SIDE PANEL, High Cube
13 MM 13 MM 228 MM 108" x 37-1/2" x 2 MM
1-7/16"
36 MM
3-5/8" 4-1/16" 2"
92.5 MM 103 MM 51.5 MM
37-1/2"
953 MM
SUB FOR: CSP-17-HC THICKNESS: 5/64" / 2 MM LENGTH: 108" / 2,743 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 96 LBS / 43.5 Kg

MODEL 1201-2819 MODEL 1201-2819-108
2-13/16"
72 MM SIDE PANEL, High Cube, 106.3" x 2 MM SIDE PANEL, High Cube, 108" x 2 MM
2-11/16"
68 MM 2-11/16" 10-15/16"
68 MM 278 MM
1-7/16"
36 MM
1-7/16" 2-3/4" 1-7/16"
37 MM 70 MM 43-15/16" 37 MM
1,116 MM
MODEL 1201-2819: MODEL 1201-2819-108:
THICKNESS: 5/64" / 2 MM LENGTH: 106-3/8" / 2,700 MM THICKNESS: 5/64" / 2 MM LENGTH: 108" / 2,743 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER MATERIAL: CORTEN STEEL FINISH: PRIMER
WEIGHT: 106 LBS / 48.1 Kg WEIGHT: 109.5 LBS / 49.7 Kg

2-13/16"
72 MM MODEL 1201-6105
2-11/16" 2-11/16" HALF-WIDTH SIDE PANEL for 45'
68 MM 68 MM
105" x 22" x 1.6 MM
1-7/16"
36 MM
2-3/4" 1-7/16"
1-7/16" 70 MM 37 MM
37 MM 10-15/16"
278 MM
22"
560 MM
WORKS WITH: BUFFERS 1201-2819, 1201-6399 PANELS THICKNESS: 1/16" / 1.6 MM
LENGTH: 105" / 2,667 MM MATERIAL: CORTEN STEEL FINISH: PRIMER WEIGHT: 42.8 LBS / 19.4 Kg

904-696-0010
E-mail: sales@buffersusa.com
1201-12 12/20/23
