1404-14
[return to Table of Contents]

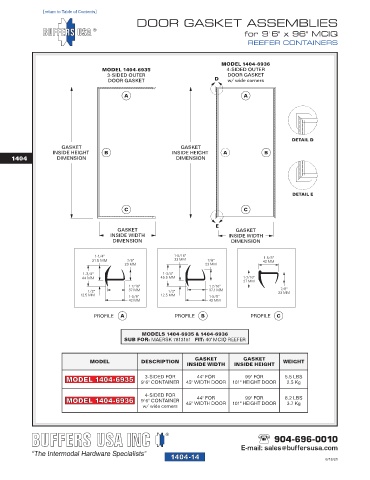

DOOR GASKET ASSEMBLIES
for 9' 6" x 96" MCIQ
REEFER CONTAINERS

MODEL 1404-6936
MODEL 1404-6935 4-SIDED OUTER
3-SIDED OUTER DOOR GASKET
DOOR GASKET D w/ wide corners

A A

DETAIL D
GASKET GASKET
INSIDE HEIGHT B INSIDE HEIGHT A B
1404 DIMENSION DIMENSION

DETAIL E

C C

E
GASKET GASKET
INSIDE WIDTH INSIDE WIDTH
DIMENSION DIMENSION

1-1/4" 1-5/16" 1-5/8"
31.5 MM 7/8" 33 MM 7/8" 42 MM
23 MM 23 MM
1-3/4" 1-3/4"
44 MM 45.5 MM 1-7/16"
37 MM
1-7/16" 1-7/16"
7/8"
1/2" 37 MM 1/2" 37.1 MM 23 MM
12.5 MM 1-5/8" 12.5 MM 1-5/8"
42 MM 42 MM
PROFILE A PROFILE B PROFILE C

MODELS 1404-6935 & 1404-6936
SUB FOR: MAERSK 7813151 FIT: 40' MCIQ REEFER

GASKET GASKET
MODEL DESCRIPTION WEIGHT
INSIDE WIDTH INSIDE HEIGHT
99" FOR
44" FOR
3-SIDED FOR
MODEL 1404-6935 9' 6" CONTAINER 45" WIDTH DOOR 101" HEIGHT DOOR 5.5 LBS
2.5 Kg
4-SIDED FOR
MODEL 1404-6936 9' 6" CONTAINER 44" FOR 99" FOR 8.2 LBS
w/ wide corners 45" WIDTH DOOR 101" HEIGHT DOOR 3.7 Kg
