1404-16
[return to Table of Contents]

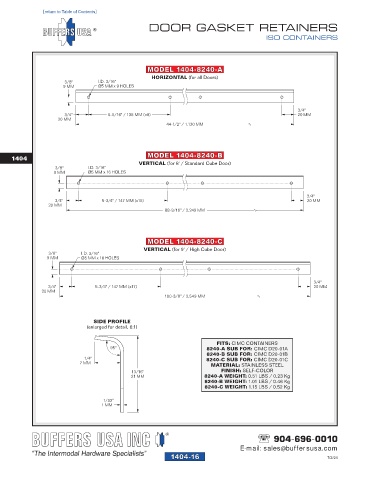

DOOR GASKET RETAINERS

ISO CONTAINERS

MODEL 1404-8240-A
HORIZONTAL (for all Doors)
3/8" I.D. 3/16"
9 MM Ø5 MM x 9 HOLES

3/4"
3/4" 5-5/16" / 135 MM (x8) 20 MM
20 MM
44-1/2" / 1,130 MM

MODEL 1404-8240-B
1404
VERTICAL (for 8' / Standard Cube Door)
3/8" I.D. 3/16"
9 MM Ø5 MM x 16 HOLES

3/4"
3/4" 5-3/4" / 147 MM (x15) 20 MM
20 MM
88-9/16" / 2,249 MM

MODEL 1404-8240-C
VERTICAL (for 9' / High Cube Door)
3/8" I.D. 3/16"
9 MM Ø5 MM x 18 HOLES

3/4"
3/4" 5-3/4" / 147 MM (x17) 20 MM
20 MM
100-3/8" / 2,549 MM

SIDE PROFILE
(enlarged for detail, 6:1)

FITS: CIMC CONTAINERS
95° 8240-A SUB FOR: CIMC D20-01A
8240-B SUB FOR: CIMC D20-01B
1/4" 8240-C SUB FOR: CIMC D20-01C
7 MM MATERIAL: STAINLESS STEEL
13/16" FINISH: SELF-COLOR
21 MM 8240-A WEIGHT: 0.51 LBS / 0.23 Kg
8240-B WEIGHT: 1.01 LBS / 0.46 Kg
8240-C WEIGHT: 1.15 LBS / 0.52 Kg

1/32"
1 MM

904-696-0010
E-mail: sales@buffersusa.com
1404-16 7/2/24
