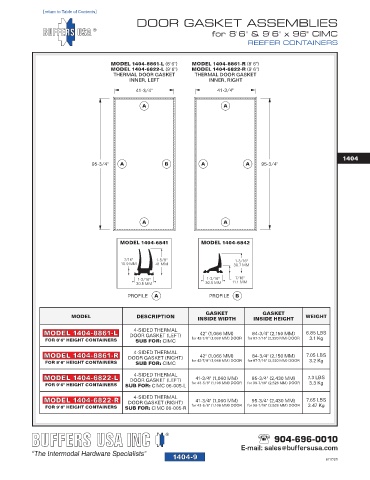

Page 187 - Buffers USA 2024 Container Hardware Catalog FlipBook

1404-09
[return to Table of Contents]
DOOR GASKET ASSEMBLIES
for 8' 6" & 9' 6" x 96" CIMC
REEFER CONTAINERS

MODEL 1404-8861-L (8' 6") MODEL 1404-8861-R (8' 6")
MODEL 1404-6822-L (9' 6") MODEL 1404-6822-R (9' 6")
THERMAL DOOR GASKET THERMAL DOOR GASKET
INNER, LEFT INNER, RIGHT
41-3/4" 41-3/4"

A A

1404
95-3/4" A B A A 95-3/4"

A A

MODEL 1404-6841 MODEL 1404-6842

7/16" 1-5/8" 1-3/16"
10.9 MM 41 MM 30.7 MM

1-3/16" 1-3/16" 7/16"
30.5 MM 30.5 MM 11.1 MM
PROFILE A PROFILE B

GASKET GASKET
MODEL DESCRIPTION INSIDE WIDTH INSIDE HEIGHT WEIGHT

4-SIDED THERMAL
MODEL 1404-8861-L DOOR GASKET (LEFT) 42" (1,066 MM) 84-3/4" (2,150 MM) 6.85 LBS
FOR 8'6" HEIGHT CONTAINERS SUB FOR: CIMC for 42-7/8" (1,088 MM) DOOR for 87-7/16" (2,220 MM) DOOR 3.1 Kg
4-SIDED THERMAL
MODEL 1404-8861-R DOOR GASKET (RIGHT) 42" (1,066 MM) 84-3/4" (2,150 MM) 7.05 LBS
FOR 8'6" HEIGHT CONTAINERS SUB FOR: CIMC for 42-7/8" (1,088 MM) DOOR for 87-7/16" (2,220 MM) DOOR 3.2 Kg

4-SIDED THERMAL
MODEL 1404-6822-L DOOR GASKET (LEFT) 41-3/4" (1,060 MM) 95-3/4" (2,430 MM) 7.3 LBS
FOR 9'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-005-L for 43-5/8" (1,108 MM) DOOR for 99-7/16" (2,526 MM) DOOR 3.3 Kg
4-SIDED THERMAL
MODEL 1404-6822-R DOOR GASKET (RIGHT) 41-3/4" (1,060 MM) 95-3/4" (2,430 MM) 7.65 LBS
FOR 9'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-005-R for 43-5/8" (1,108 MM) DOOR for 99-7/16" (2,526 MM) DOOR 3.47 Kg

904-696-0010
E-mail: sales@buffersusa.com
1404-9 6/17/21
