1404-15
[return to Table of Contents]

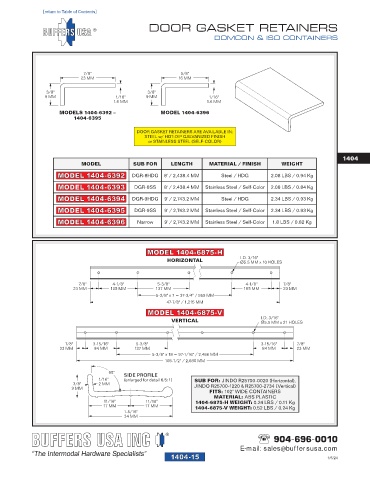

DOOR GASKET RETAINERS

DOMCON & ISO CONTAINERS

7/8" 5/8"
23 MM 16 MM
3/8" 3/8"
9 MM 1/16" 9 MM 1/16"
1.6 MM 1.6 MM

MODELS 1404-6392 – MODEL 1404-6396
1404-6395

DOOR GASKET RETAINERS ARE AVAILABLE IN:
STEEL w/ HOT-DIP GALVANIZED FINISH
or STAINLESS STEEL (SELF-COLOR)

1404
MODEL SUB FOR LENGTH MATERIAL / FINISH WEIGHT
MODEL 1404-6392 DGR-8HDG 8' / 2,438.4 MM Steel / HDG 2.08 LBS / 0.94 Kg

MODEL 1404-6393 DGR-8SS 8' / 2,438.4 MM Stainless Steel / Self-Color 2.08 LBS / 0.84 Kg
MODEL 1404-6394 DGR-9HDG 9' / 2,743.2 MM Steel / HDG 2.34 LBS / 0.93 Kg
MODEL 1404-6395 DGR-9SS 9' / 2,743.2 MM Stainless Steel / Self-Color 2.34 LBS / 0.93 Kg

MODEL 1404-6396 Narrow 9' / 2,743.2 MM Stainless Steel / Self-Color 1.8 LBS / 0.82 Kg

MODEL 1404-6875-H
HORIZONTAL I.D. 3/16"
Ø5.5 MM x 10 HOLES

7/8" 4-1/8" 5-3/8" 4-1/8" 7/8"
23 MM 105 MM 137 MM 105 MM 23 MM
5-3/8" x 7 = 37-3/4" / 959 MM
47-7/8" / 1,215 MM
MODEL 1404-6875-V
VERTICAL I.D. 3/16"
Ø5.5 MM x 21 HOLES

7/8" 3-15/16" 5-3/8" 3-15/16" 7/8"
23 MM 84 MM 137 MM 84 MM 23 MM
5-3/8" x 18 = 97-1/16" / 2,466 MM
105-1/2" / 2,680 MM
95° SIDE PROFILE
1/16" (enlarged for detail 6.5:1) SUB FOR: JINDO R25700-0020 (Horizontal),
3/8" 2 MM
9 MM JINDO R25700-1220 & R25700-2734 (Vertical)
FITS: 102" WIDE CONTAINERS
MATERIAL: ABS PLASTIC
11/16" 11/16" 1404-6875-H WEIGHT: 0.24 LBS / 0.11 Kg
17 MM 17 MM 1404-6875-V WEIGHT: 0.52 LBS / 0.24 Kg
1-5/16"
34 MM

904-696-0010
E-mail: sales@buffersusa.com
1404-15 1/5/24
