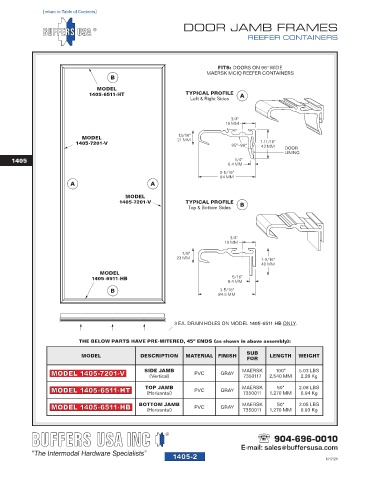

DOOR JAMB FRAMES

REEFER CONTAINERS

FITS: DOORS ON 96" WIDE
MAERSK MCIQ REEFER CONTAINERS
B

MODEL
1405-6511-HT TYPICAL PROFILE A
Left & Right Sides

3/4"
19 MM
13/16"
MODEL 21 MM
1405-7201-V 95º–98º 1-11/16"
43 MM
DOOR
LINING
1405 1/4"
6.4 MM
3-5/16"
84 MM
A A

MODEL
1405-7201-V TYPICAL PROFILE B
Top & Bottom Sides

3/4"
19 MM

7/8"
23 MM 1-9/16"
40 MM
MODEL
1405-6511-HB 5/16"
8.4 MM
B 3-5/16"
84.5 MM

3 EA. DRAIN HOLES ON MODEL 1405-6511-HB ONLY.

THE BELOW PARTS HAVE PRE-MITERED, 45º ENDS (as shown in above assembly):
SUB
MODEL DESCRIPTION MATERIAL FINISH FOR LENGTH WEIGHT

100"
MODEL 1405-7201-V SIDE JAMB PVC GRAY MAERSK 2,540 MM 5.03 LBS
7350117
(Vertical)
2.28 Kg
50"
MODEL 1405-6511-HT TOP JAMB PVC GRAY MAERSK 1,270 MM 2.08 LBS
0.94 Kg
(Horizontal)
7350011
50"
MODEL 1405-6511-HB BOTTOM JAMB PVC GRAY MAERSK 1,270 MM 2.05 LBS
(Horizontal)
7350011
0.93 Kg
