1404-11
[return to Table of Contents]

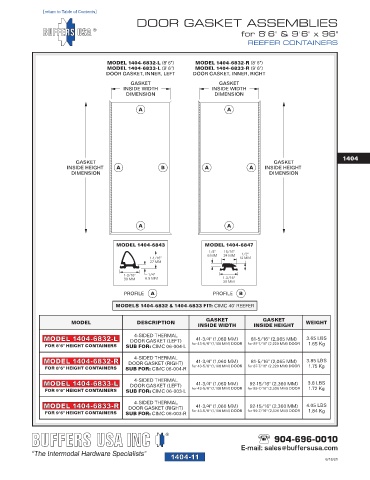

DOOR GASKET ASSEMBLIES
for 8' 6" & 9' 6" x 96"
REEFER CONTAINERS

MODEL 1404-6832-L (8' 6") MODEL 1404-6832-R (8' 6")
MODEL 1404-6833-L (9' 6") MODEL 1404-6833-R (9' 6")
DOOR GASKET, INNER, LEFT DOOR GASKET, INNER, RIGHT
GASKET GASKET
INSIDE WIDTH INSIDE WIDTH
DIMENSION DIMENSION

A A

1404
GASKET GASKET
INSIDE HEIGHT A B A A INSIDE HEIGHT
DIMENSION DIMENSION

A A

MODEL 1404-6843 MODEL 1404-6847
1/4" 15/16"
6 MM 24 MM 1/2"
1-1/16" 12 MM
27 MM
1-3/16" 1/4"
30 MM 6.5 MM 1-3/16"
30 MM
PROFILE A PROFILE B
MODELS 1404-6832 & 1404-6833 FIT: CIMC 40' REEFER

GASKET GASKET
MODEL DESCRIPTION WEIGHT
INSIDE WIDTH INSIDE HEIGHT
4-SIDED THERMAL
MODEL 1404-6832-L DOOR GASKET (LEFT) 41-3/4" (1,060 MM) 81-5/16" (2,065 MM) 3.65 LBS
FOR 8'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-004-L for 43-5/8" (1,108 MM) DOOR for 87-7/16" (2,220 MM) DOOR 1.65 Kg
4-SIDED THERMAL
MODEL 1404-6832-R DOOR GASKET (RIGHT) 41-3/4" (1,060 MM) 81-5/16" (2,065 MM) 3.85 LBS
FOR 8'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-004-R for 43-5/8" (1,108 MM) DOOR for 87-7/16" (2,220 MM) DOOR 1.75 Kg

4-SIDED THERMAL
MODEL 1404-6833-L DOOR GASKET (LEFT) 41-3/4" (1,060 MM) 92-15/16" (2,360 MM) 3.8 LBS
FOR 9'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-003-L for 43-5/8" (1,108 MM) DOOR for 99-7/16" (2,526 MM) DOOR 1.72 Kg
4-SIDED THERMAL
MODEL 1404-6833-R DOOR GASKET (RIGHT) 41-3/4" (1,060 MM) 92-15/16" (2,360 MM) 4.05 LBS
FOR 9'6" HEIGHT CONTAINERS SUB FOR: CIMC 06-003-R for 43-5/8" (1,108 MM) DOOR for 99-7/16" (2,526 MM) DOOR 1.84 Kg

904-696-0010
E-mail: sales@buffersusa.com
1404-11 6/18/21
