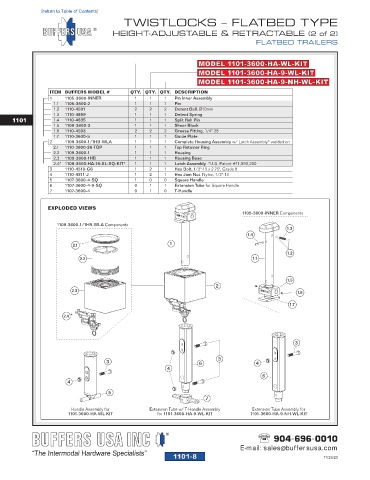

Page 66 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1101-08
[return to Table of Contents]
TWISTLOCKS – FLATBED TYPE
HEIGHT-ADJUSTABLE & RETRACTABLE (2 of 2)
FLATBED TRAILERS

MODEL 1101-3600-HA-WL-KIT
MODEL 1101-3600-HA-9-WL-KIT
MODEL 1101-3600-HA-9-NH-WL-KIT
ITEM BUFFERS MODEL # QTY. QTY. QTY. DESCRIPTION
1 1105-3600-INNER 1 1 1 Pin Inner Assembly
1.1 1105-3600-2 1 1 1 Pin
1.2 1110-4501 2 2 2 Detent Ball, Ø10mm
1.3 1110-4899 1 1 1 Detent Spring
1101 1.4 1110-4635 1 1 1 Split Roll Pin
1.5 1109-3600-3 1 1 1 Shear Block
1.6 1110-4503 2 2 2 Grease Fitting, 1/4"-28
1.7 1110-3600-5 1 1 1 Guide Plate
2 1109-3600-1/1HB-WLA 1 1 1 Complete Housing Assembly w/ Latch Assembly welded on
2.1 1110-3600-26-TOP 1 1 1 Top Retainer Ring
2.2 1109-3600-1 1 1 1 Housing
2.3 1109-3600-1HB 1 1 1 Housing Base
2.4 1108-3600-HA-18-SL-SQ 1 1 1 Latch Assembly
3 1110-4510-G8 1 2 1 Hex Bolt, 1/2"-13 x 2.75", Grade 8
4 1110-4511-J 1 2 1 Hex Jam Nut, Nyloc, 1/2"-13
5 1107-3600-4-SQ 1 0 0 Square Handle
6 1107-3600-4-9-SQ 0 1 1 Square Handle Extension Tube
7 1107-3600-4 0 1 0 T-Handle

EXPLODED VIEWS
1105-3600-INNER Components
1109-3600-1/1HB-WLA Components
1.3
1.4
2.1 1
1.2
2.2 1.1

1.5
2
2.3 1.6
1.7

2.4

3

3 6 3 4
4
6
4
5
7
Handle Assembly for Extension Tube w/ T-Handle Assembly Extension Tube Assembly for
1101-3600-HA-WL-KIT for 1101-3600-HA-9-WL-KIT 1101-3600-HA-9-NH-WL-KIT

904-696-0010
E-mail: sales@buffersusa.com
1101-8 11/29/23
