1101-04
[return to Table of Contents]

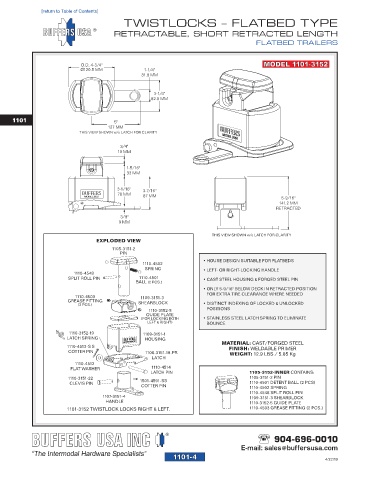

TWISTLOCKS – FLATBED TYPE
RETRACTABLE, SHORT RETRACTED LENGTH
FLATBED TRAILERS

O.D. 4-3/4" MODEL 1101-3152
Ø120.5 MM 1-1/4"
31.8 MM

3-1/4"
82.5 MM

1101 5"
127 MM
THIS VIEW SHOWN w/o LATCH FOR CLARITY

3/4"
19 MM

1-5/16"
33 MM

3-1/16" 3-7/16"
78 MM 87 MM 5-9/16"
141.2 MM
RETRACTED
3/8"
9 MM

THIS VIEW SHOWN w/o LATCH FOR CLARITY
EXPLODED VIEW
1105-3151-2
PIN
• HOUSE DESIGN SUITABLE FOR FLATBEDS
1110-4502
SPRING • LEFT- OR RIGHT-LOCKING HANDLE
1110-4548
SPLIT ROLL PIN 1110-4501 • CAST STEEL HOUSING & FORGED STEEL PIN
BALL (2 PCS.)
• ONLY 5-9/16" BELOW DECK IN RETRACTED POSITION
FOR EXTRA TIRE CLEARANCE WHERE NEEDED
1110-4503 1109-3151-3
GREASE FITTING SHEARBLOCK
(2 PCS.) • DISTINCT INDEXING OF LOCKED & UNLOCKED
1110-3152-5 POSITIONS
GUIDE PLATE
(FOR LOCKING BOTH • STAINLESS STEEL LATCH SPRING TO ELIMINATE
LEFT & RIGHT) BOUNCE
1110-3152-19 1109-3151-1
LATCH SPRING HOUSING
1110-4513-S S MATERIAL: CAST/FORGED STEEL
FINISH: WELDABLE PRIMER
COTTER PIN 1108-3151-18-PR WEIGHT: 12.9 LBS / 5.85 Kg
LATCH
1110-4512
FLAT WASHER 1110-4514
LATCH PIN 1105-3152-INNER CONTAINS:
1110-3151-22 1105-3151-2 PIN
CLEVIS PIN 1501-4591-SS 1110-4501 DETENT BALL (2 PCS)
COTTER PIN 1110-4502 SPRING
1110-4548 SPLIT ROLL PIN
1107-3151-4 1109-3151-3 SHEARBLOCK
HANDLE 1110-3152-5 GUIDE PLATE
1101-3152 TWISTLOCK LOCKS RIGHT & LEFT. 1110-4503 GREASE FITTING (2 PCS.)

904-696-0010
E-mail: sales@buffersusa.com
1101-4 4/22/19
