1101-07
[return to Table of Contents]

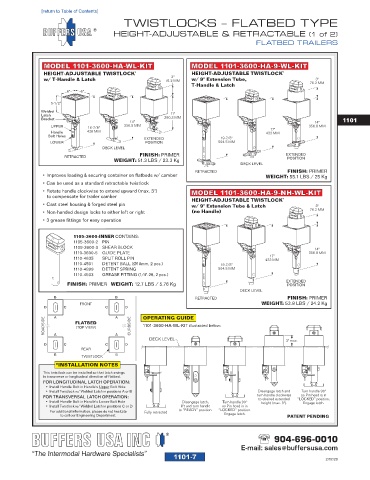

TWISTLOCKS – FLATBED TYPE
HEIGHT-ADJUSTABLE & RETRACTABLE (1 of 2)
FLATBED TRAILERS

MODEL 1101-3600-HA-WL-KIT MODEL 1101-3600-HA-9-WL-KIT
HEIGHT-ADJUSTABLE TWISTLOCK * HEIGHT-ADJUSTABLE TWISTLOCK *
3"
w/ T-Handle & Latch 76.2 MM w/ 9" Extension Tube, 3"
T-Handle & Latch 76.2 MM
6" 6"

5-1/2"
Welded 11"
Latch
Bracket 280.3 MM 1101
14" 14"
UPPER 16-7/8" 356.5 MM 17" 356.8 MM
Handle 428 MM 433 MM
Bolt Holes
EXTENDED 19-7/8"
LOWER POSITION 504.5 MM
DECK LEVEL
FINISH: PRIMER EXTENDED
RETRACTED POSITION
WEIGHT: 51.3 LBS / 23.3 Kg
DECK LEVEL
RETRACTED FINISH: PRIMER
• Improves loading & securing container on flatbeds w/ camber WEIGHT: 55.1 LBS / 25 Kg
• Can be used as a standard retractable twistlock
• Rotate handle clockwise to extend upward (max. 3") MODEL 1101-3600-HA-9-NH-WL-KIT
to compensate for trailer camber HEIGHT-ADJUSTABLE TWISTLOCK *
• Cast steel housing & forged steel pin w/ 9" Extension Tube & Latch 3"
• Non-handed design locks to either left or right (no Handle) 76.2 MM
• 3 grease fittings for easy operation

1105-3600-INNER CONTAINS:
1105-3600-2 PIN
1109-3600-3 SHEAR BLOCK 14"
1110-3600-5 GUIDE PLATE 356.8 MM
17"
1110-4635 SPLIT ROLL PIN 433 MM
1110-4501 DETENT BALL (Ø10mm, 2 pcs.) 19-7/8"
1110-4899 DETENT SPRING 504.5 MM
1110-4503 GREASE FITTING (1/4"-28, 2 pcs.)
EXTENDED
FINISH: PRIMER WEIGHT: 12.7 LBS / 5.76 Kg POSITION
DECK LEVEL
B B RETRACTED FINISH: PRIMER
FRONT WEIGHT: 53.8 LBS / 24.2 Kg
D C C D
ROADSIDE A FLATBED A CURBSIDE OPERATING GUIDE
1101-3600-HA-WL-KIT illustrated below:
(TOP VIEW)
A
A
DECK LEVEL 3" max.
D C C D
REAR
B TWISTLOCK B
*INSTALLATION NOTES
This twistlock can be installed so that latch swings
in transverse or longitudinal direction of flatbed.
FOR LONGITUDINAL LATCH OPERATION:
• Install Handle Bolt in Handle’s Upper Bolt Hole
• Install Twistlock w/ Welded Latch in positions A or B Disengage latch and Turn handle 90°
so Pin head is in
FOR TRANSVERSAL LATCH OPERATION: turn handle clockwise “LOCKED” position.
to desired extended
• Install Handle Bolt in Handle’s Lower Bolt Hole Disengage latch, Turn handle 90° height (max. 3"). Engage latch.
• Install Twistlock w/ Welded Latch in positions C or D lift and turn handle so Pin head is in
For additional information, please do not hesitate Fully retracted to “READY” position. “LOCKED” position.
to call our Engineering Department. Engage latch. PATENT PENDING

904-696-0010
E-mail: sales@buffersusa.com
1101-7 2/17/20
