1101-03
[return to Table of Contents]

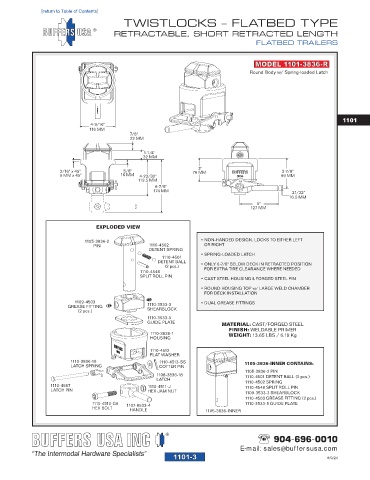

TWISTLOCKS – FLATBED TYPE
RETRACTABLE, SHORT RETRACTED LENGTH
FLATBED TRAILERS

MODEL 1101-3836-R
Round Body w/ Spring-loaded Latch

1101
4-9/16"
116 MM
7/8"
22 MM

1-1/4"
32 MM
3"
3/16" x 45° 5/8" 76 MM 3-7/8"
5 MM x 45° 16 MM 4-23/32" 99 MM
119.5 MM
6-7/8"
174 MM 21/32"
16.5 MM

5"
127 MM

EXPLODED VIEW

1105-3836-2 • NON-HANDED DESIGN, LOCKS TO EITHER LEFT
PIN 1110-4502 OR RIGHT
SPRING
• SPRING-LOADED LATCH
1110-4501
BALL (2 PCS) • ONLY 6-7/8” BELOW DECK IN RETRACTED POSITION
FOR EXTRA TIRE CLEARANCE WHERE NEEDED
1110-4548
SPLIT ROLL PIN
• CAST STEEL HOUSING & FORGED STEEL PIN
• ROUND HOUSING TOP w/ LARGE WELD CHAMBER
FOR DECK INSTALLATION
1109-4503
GREASE FITTING 1110-3533-3 • DUAL GREASE FITTINGS
(2 PCS) SHEARBLOCK
1110-3533-5
GUIDE PLATE
MATERIAL: CAST/FORGED STEEL
FINISH: WELDABLE PRIMER
1110-3836-1 WEIGHT: 13.65 LBS / 6.19 Kg
HOUSING
1110-4512
FLAT WASHER
1110-3836-19 1110-4513-SS 1105-3836-INNER CONTAINS:
LATCH SPRING COTTER PIN
1105-3836-2 PIN
1108-3836-18 1110-4501 DETENT BALL (2 PCS)
LATCH 1110-4502 SPRING
1110-4667 1110-4511-J
LATCH PIN HEX NUT 1110-4548 SPLIT ROLL PIN
1109-3533-3 SHEARBLOCK
1110-4503 GREASE FITTING (2 PCS)
1110-4802-G8 1110-3533-5 GUIDE PLATE
HEX BOLT 1107-8533-4
HANDLE 1105-3836-INNER

904-696-0010
E-mail: sales@buffersusa.com
1101-3 4/16/19
