1101-06
[return to Table of Contents]

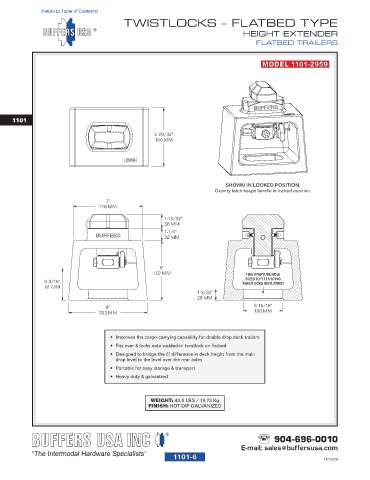

TWISTLOCKS – FLATBED TYPE
HEIGHT EXTENDER
FLATBED TRAILERS

MODEL 1101-2959

1101

5-29/32"
150 MM

SHOWN IN LOCKED POSITION.
Gravity latch keeps handle in locked position.
7"
178 MM
1-13/32"
36 MM
1-1/4"
32 MM

6"
152 MM THIS APERTURE HOLE
SIZED TO FIT EXISTING
3-3/16" TWISTLOCKS ON FLATBED
81 MM
1-3/32"
28 MM
8" 3-15/16"
203 MM 100 MM

• Improves the cargo-carrying capability for double drop deck trailers
• Fits over & locks onto welded-in twistlock on flatbed
• Designed to bridge the 6" difference in deck height from the main
drop level to the level over the rear axles
• Portable for easy storage & transport
• Heavy duty & galvanized

WEIGHT: 43.5 LBS / 19.73 Kg
FINISH: HOT-DIP GALVANIZED

904-696-0010
E-mail: sales@buffersusa.com
1101-6 11/19/20
