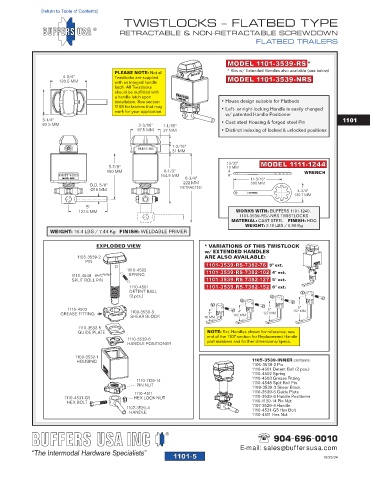

Page 63 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1101-05
[return to Table of Contents]
TWISTLOCKS – FLATBED TYPE
RETRACTABLE & NON-RETRACTABLE SCREWDOWN
FLATBED TRAILERS

MODEL 1101-3539-RS *
PLEASE NOTE: Not all * Kits w/ Extended Handles also available (see below)
4-3/4" Twistlocks are supplied MODEL 1101-3539-NRS
120.5 MM with an integral handle
latch. All Twistlocks
should be outfitted with • House design suitable for Flatbeds
a handle latch upon
installation. See section • Left- or right-locking Handle is easily changed
1108 for latches that may w/ patented Handle Positioner
work for your application. • Cast steel Housing & forged steel Pin
3-1/4" • Distinct indexing of locked & unlocked positions 1101
82.5 MM 3-3/16" 1-1/16"
97.5 MM 27 MM
25/64" MODEL 1111-1244
10 MM
WRENCH
1-7/32"
31 MM 11-3/16"
300 MM
4-3/4"
5-7/8" 120.7 MM
150 MM 6-1/2"
164.5 MM
8-3/4"
222 MM WORKS WITH: BUFFERS 1101-1240,
O.D. 5/8" RETRACTED 1101-3539-RS/-NRS TWISTLOCKS
Ø16 MM MATERIAL: CAST STEEL FINISH: HDG
WEIGHT: 2.19 LBS / 0.99 Kg
5" * VARIATIONS OF THIS TWISTLOCK
127.5 MM
w/ EXTENDED HANDLES
ARE ALSO AVAILABLE:
1101-3539-RS-7382-76 3" ext.
WEIGHT: 16.4 LBS / 7.44 Kg FINISH: WELDABLE PRIMER
1101-3539-RS-7382-102 4" ext.
1101-3539-RS-7382-127 5" ext.
EXPLODED VIEW
1101-3539-RS-7382-152 6" ext.
1105-3539-2
PIN
1110-4502 5" 6"
4"
1110-4548 SPRING 3" 102 MM 127 MM 152 MM
SPLIT ROLL PIN 76 MM
1110-4501
DETENT BALL
(2 pcs.) NOTE: Ext. Handles shown for reference; see
end of the 1107 section for Replacement Handle
part numbers and further dimensions/specs.
1110-4503
GREASE FITTING 1109-3539-3 1101-3539-RS-OS35 1101-3539-RS-OS70
SHEAR BLOCK
2-1/2" ext. 3-7/8" ext.
1110-3532-5 2-1/2" 3-7/8"
GUIDE PLATE 35 MM 70 MM
1110-3539-6
HANDLE POSITIONER
1109-3532-1
HOUSING 1105-3539-INNER contains:
1105-3539-2 Pin
1110-4501 Detent Ball (2 pcs.)
1110-4502 Spring
1110-4503 Grease Fitting
1110-1129-14 1110-4548 Split Roll Pin
PIN NUT 1109-3539-3 Shear Block
1110-4511 1110-3539-5 Guide Plate
1110-4531-G5 HEX LOCK NUT 1110-3539-6 Handle Positioner
HEX BOLT 1110-1129-14 Pin Nut
1107-3529-4 1107-3529-4 Handle
1110-4531-G5 Hex Bolt
HANDLE 1110-4511 Hex Nut

904-696-0010
E-mail: sales@buffersusa.com
1101-5 5/4/22
